600 polar Park

Power and Performance in the Park

Representative of a new generation. Pioneer and milestone. Dream machine. This is what can happen when a manufacturer develops a snow groomer in close cooperation with its customers. With the PistenBully 600 Polar Park, we have jointly succeeded in setting new standards. In terms of power and performance. In efficiency, operation and comfort. The new PistenBully 600 Polar Park is lighter than any other in its class. And more environmentally friendly.

The PistenBully 600 Polar Park is more than a normal snow groomer. It is the park professional – ready for all disciplines. Developed together with the best riders and shapers in the world. Equipped with everything you could wish for when creating terrain parks.

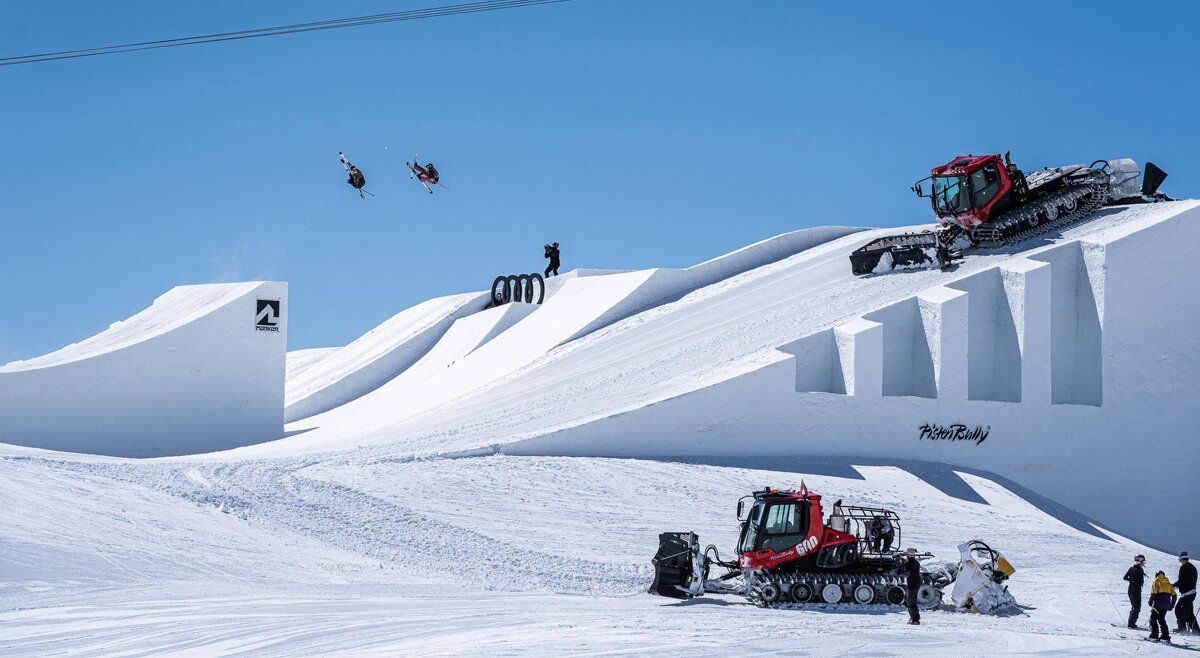

A fun park built with the PistenBully 600 Polar Park.
PistenBully 600 Polar Park

The park specialist – The PistenBully 600 Polar in the Park model variant.
Developed together with the best riders and shapers in the world.
Equipped with everything you need for terrain park grooming.



ParkBlade

Flexible ParkBlade for extremely precise shaping and perfect results. Offers more scope for creative work. And enables even more unusual shapes. Backblading teeth leave the perfect structure when grading a landing in reverse.

Transport tines

Fitted as standard in the ParkBlade for easy transport of rails, funboxes and other park accessories. As a one-man show. Ideal for competitions.

Rear Implement Carrier

Optimum kinematics. For high mobility and more flexibility.. Together with the AlpineFlexTiller it facilitates an impressive working range of 162⁰. Perfect for shaping and reshaping kickers and ramps, jumps and pipes.

Working hydraulics

Faster response, direct proportional control of all functions.

Quick-mount system

With ParkPro kinematics and reinforced cylinders. No intermediate frame necessary.

Precise control

Control of the rear carrier via joystick for intuitive operation. Position the tiller precisely and smoothly as you work.


Showroom
PistenBully 600 Polar Park: side view
The chains of the PistenBully 600 Polar Park for any application.
Tracks for every application

As flexible as a Swiss army knife, our undercarriage in combination with the chain can be adapted to all customer requirements and thus offers the perfect solution for every area of application, regardless of what is important: pushing, climbing ability, turning ability, transport or heavy additional equipment.

Rear implement carrier

Almost 200 degrees of movement of the tiller leaves nothing to be desired in park construction. Thanks to direct operation via the joystick, every contour can be worked in detail and the result is unique, just like when preparing with SlopeTracer and AutoTracer.

Quick-change system

The Park Quick Coupler System offers modified kinematics for even larger movement radii during park construction. Thanks to the improved hydraulics, all parking requirements can be mastered precisely, quickly and powerfully.

 ParkBlade PistenBully 600 Polar Park
ParkBlade

Utility of use speaks for our ParkBlade. Integrated hydraulic transport tines are the perfect solution when moving park equipment. The wide side wings, together with the vertical cutting edges enable sharply cut side walls  and working widths of up to 5.7 m.

The driver's cab of the PistenBully 600 Polar Park.
Driver's cab

The driver is the center of attention. This guiding principle is realized in our cab with comfort, ergonomics and intuitive operation. Thanks to generous window glass, perfect arrangement and ideal LED illumination, visibility is exceptional, especially at night.

 Cockpit PistenBully 600 Polar Park.
The control unit of the cockpit of the PistenBully 600 Polar Park
Control unit

For a steady hand and safe handling in every driving situation: driver's seat, armrest and joystick are firmly connected. An ergonomic and comfortable unit. Individually adjustable to the driver. Enables fatigue-free operation, even when driving in rough cut park features.

 Joystick PistenBully 600 Polar Park.
Joystick

Ergonomic and freely movable in all directions. For intuitive control. The four axes of the joystick allow four simultaneous movements of the blade. And proportional control of the attachments. All with just one hand.


The high-quality interior trim in the cockpit of the PistenBully 600 Polar Park.
Interior

High-quality and easy-care interior trim. New floor assembly. Both with innovative thermal insulation and significantly improved soundproofing, making the PistenBully 600 Polar Park quieter than ever before. The optimized ventilation in the center console ensures a perfect interior climate - with comfort automatic climate control for the first time on request, plus plenty of space and freedom of movement.

SNOWsat
Mehr wissen.
SNOWsat

Die SNOWsat Schneetiefenmessung sorgt für die genaue Übersicht über die Schneesituation im Skigebiet. Nur wenn Sie die Schneetiefen überall auf der Piste kennen, können Sie gezielt Schnee verschieben. Das Resultat: Jeden Tag perfekte Pisten für Ihre Gäste, gesteigerte Produktivität, enorme Kosteneinsparungen, schonender Umgang mit Ressourcen, sowie erhöhte Arbeits- und Betriebssicherheit.

Aber: SNOWsat ist mehr als nur Schneetiefenmessung. Entdecken Sie alle Lösungen von SNOWsat!


 iTerminal  PistenBully 600 Polar Park.
iTerminal

10-inch display with touch control. Clear and user-friendly. All active vehicle systems are highlighted in color. With quick navigation option via symbols. Completely prepared for SNOWsat.

Halblenkrad des PistenBully
Half-steering wheel

Precise steering: The semi-steering wheel is infinitely adjustable side-to-side and fits comfortably in the hand. The driver effortlessly steers the PistenBully and finds the most important functions directly in the steering.

Alternative Sticksteuerung
Alternative
Sticks

As an option to the steering wheel: Stick control for direct handling and steering. A thumb dial potentiometer regulates travel speed.

The compact engine of the PistenBully 600 Polar Park.
Larger tank capacity of the PistenBully 600 Polar Park.
Larger tank volume

Despite lower fuel consumption, significantly more power and torque than its predecessor. Long range due to larger tank volume (300 l) for efficient and economical operation.

The compact engine with simple structure of the PistenBully 600 Polar Park
Compact engine

Compact engine with simple design. Less complex components and improved access. Thus clear, easy to maintain and less prone to malfunctions and errors.

The diesel particulate filter of the PistenBully 600 Polar Park
Diesel particulate filter

Environmentally friendly pioneer: With the clean 6-cylinder engine with 520 hp including diesel particulate filter, the PistenBully 600 Polar Park was the first snow groomer in the world to comply with EU Stage V.

A freshly groomed slope.

Assistance systems

Assistenzsystem des PistenBully 600 W: AutoTracer
MAXIMUM TRACKING STABILITY
AutoTracer

Rear implement carrier with intelligent, active steering assistance. Possible in both rigid position (fixed) and floating position (relieved). When activated the tiller follows the 600W in the same curve radius. Automatic countersteering on side slopes. For automatic support and relief of the driver!

Assistenzsystem des PistenBully 600 W: SlopeTracer
IDEAL GROUND FOLLOWING
SlopeTracer

Intelligent control of the rear implement carrier. Can be used like a parallel tool carrier via software. Ensures perfect ground adaptation of the tiller in hilly terrain and automatically adjusts the milling depth. The patented SlopeTracer simplifies operation and enables very large movement radii.

Assistenzsystem des PistenBully 800: Schneetiefenmessunng
RESOURCE-CONSERVING SNOW MANAGEMENT
SNOWsat snow depth measurement

The high-precision snow depth measurement helps the operator detect slope areas with small amounts of snow and identify snow reserves – under, in front of and on both sides of the vehicle. This way snow can be pushed with precision and maximum quality can be achieved for the slope structure. Increases productivity while conserving resources and helping to preserve the environment.

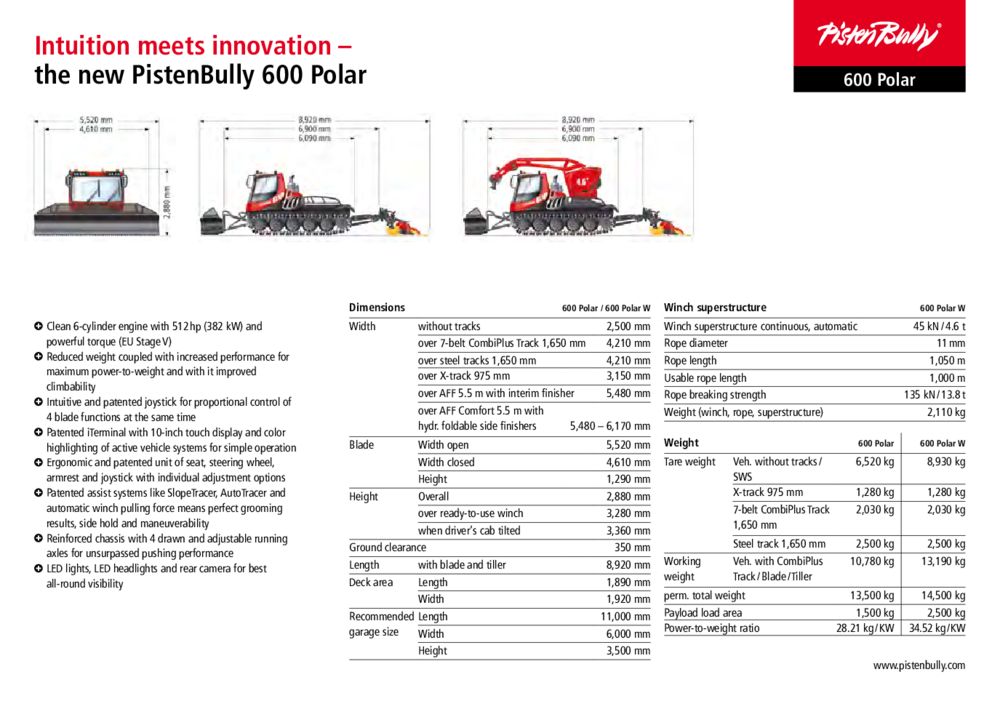

Technical data

TypeCummins X 12
Number of cylinders6
Displacement11.8 l / 11,800 cm³
Performance according to ECE382 kW / 520 PS
max. torque2,375 Nm @ 1,200 U/min
Tank capacity300 l
Fuel consumptionfrom 19.5 l/h
Tank capacity DEF (AdBlue)38 l
Emission standardEU Stage V and EPA Tier 4F (USA)
Traction drive pump175 cm³
Traction drives125 cm³
Milling drive105 cm³
Technische Daten des PistenBully 600 und 600 Polar.
TypeCummins X 12
Number of cylinders6
Displacement11.8 l / 11,800 cc
Performance according to ECE512 hp
max. torque2,250 Nm @ 1,200 rpm
Tank capacity79 gal
Fuel consumptionfrom 5.15 gal/h
Tank capacity DEF (AdBlue)10 gal
Emission standardEU Stage V and EPA Tier 4F (USA)
Traction drive pump175 cc
Traction drives125 cc
Milling drive105 cc
Equipment

Gearbox, Chassis & Wheels

  • Optimized transfer case with less noise and vibration
  • Exclusively trailed axles for improved driving behavior
  • Shorter axles for better accessibility to the drive components
  • Reinforced rocker arm and wheel bearing due to larger taper roller bearings
  • QuickAdjust for quick adjustment of the chassis via gear mechanism
  • Individual axle loads and spring characteristics for improved ride comfort (solo/winch)
  • More running smoothness and low pitching behavior due to damping of composite bushings
  • Magnum sprocket
  • Solid tires
  • Snow fenders to prevent snow spray

Hydraulics and working hydraulics

  • Electro-hydraulic brake
  • New transfer case tilts the drive pumps outwards by 5°.
  • Optimized accessibility
  • 20% higher flow output than the predecessor
  • Optimized control for better efficiency
  • High pressure filter
  • Calibrated valves with identical response in all vehicles
  • Best performance values for speed and responsiveness
  • Individually adjustable valve characteristics
  • All functions can be controlled proportionally and independently of each other
  • Common parts (e.g. proportional valves and solenoid coils)

Cabin

  • High-end sound system precisely tuned to the vehicle
  • Rear camera color
  • DAB+ radio
  • Bluetooth hands-free kit
  • Connections: USB and audio-in
  • Park comfort driver's seat with swivel function

Lighting

  • LED light package
  • LED SideFinder lights integrated in the support frame
  • LED TillerFlap luminaires
  • LED BladeFlap luminaires
  • Additional LED indicators and tail lights integrated in the support frame

Electronics and batteries

  • Simple onboard diagnostics with error codes in plain text
  • Automatic temperature compensation with cold run protection of the components
  • Maintenance-free batteries with higher cold start amperage
  • Service-friendly due to reduced variety of parts

Technology and engine

  • Auxiliary fuel tank 120 l
  • Trailer coupling
  • High pressure connection kit for front mount attachments
  • Charge pressure reduction (cold start aid)
  • Stick control with power potentiometer for temporary increase of engine speed
  • Hydraulic oil preheating

Cabin and comfort

  • Seat belt with shoulder harness
  • Parking heater
  • Automatic climate control
  • Premium sound package with Alpine subwoofer and amplifier
