Small, powerful and clean

The all-rounder for cross-country skiing, piste and indoor grooming



Just the way you wanted it. Quality and reliability have remained - the vehicle concept has been completely revised in close consultation with international customers. The result: intuitive operation developed according to the latest ergonomic findings, the most powerful engine in its class, environmentally friendly exhaust technology, the cockpit, the seat and many other practical new developments.

The fundamentally new operating concept, which encompasses the entire operator's workplace, is and remains groundbreaking: The heart of the control panel integrated in the armrest is the 4-axis joystick, with which the blade can be intuitively controlled with one hand in all degrees of freedom.

Brand new is the facelift of the PistenBully 100:
The strongest snow groomer in its class is now even stronger:
16% more torque, a lower engine speed and more fuel tank capacity provide more power, less fuel consumption, lower CO2 emissions and a greater range.
Also new and in series: The assistance system AutoTracer!


PistenBully 100 with operators
the Pistenbully 100 is indispensable for the maintenance of our trails!

Piotr Czaja, Technical Director Kotelnica, Poland


showroom

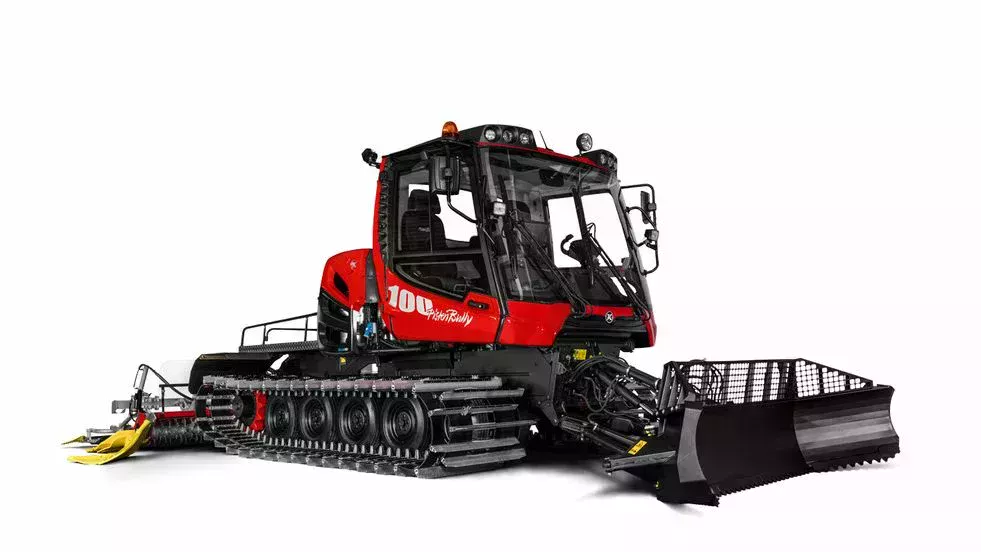

PistenBully 100 Side view
Neues Schnellwechselsystem des PistenBully 100 EU V
Neues Schnellwechselsystem

Das längere Schnellwechselsystem bietet eine bessere Sicht auf das 12-Wege Räumschild. Ein neuer Hubzylinder ermöglicht ein größeres Bewegungsspektrum. Somit eignet sich der PistenBully 100 auch für den Einsatz in Parks.

Chassis and tracks of the PistenBully 100 EU V
Chassis and tracks

Stable and low-maintenance: The PistenBully 100's undercarriage is characterized by excellent climbing ability thanks to 4 running axles plus higher payloads as well as better service accessibility. Automatic track tensioning reduces wear.

AllWayBlade of the PistenBully 100 EU V
AllWayBlade

A taller snow shield and extended working widths for more snow volume. A synchronous control of the side wings with reinforced bearings and simultaneous control of the tiller and blade via joystick.

PistenBully 100 back view
Working width of the PistenBully 100 EU V
3 working widths

Efficient work due to wider tiller shaft and higher working width. More tiller teeth produce a better track pattern. Tilling depth and contact pressure of the snow tiller and track pans can be adjusted independently of each other.

Tracking device of the PistenBully 100 EU V
Tracking setters for every application

Precise Nordic track preparation and improved terrain adaptation due to deeper set track pans. Easy disconnection of cross-country tracksetters and tiller when not in use (VarioTrackDesigner) without requiring special tools.

PistenBully 100 Cockpit
The joystick with intuitive control of the PistenBully 100 EU V.
Joystick

The newly developed ergonomic double-joint joystick, which can be moved freely in all directions at the same time and transmits the movements of the hand directly to the blade, makes working even easier. Lifting, lowering, changing the cutting angle, tilting and swiveling is now more intuitive and precise.

The armrest of the PistenBully 100 EU V.
Individual touch button assignment

The control panel is located next to the armrest. The touch buttons can be assigned individual functions, allowing the control panel to be adapted to the driver's specific wishes.

The iTerminal of the PistenBully 100 EU V.
iTerminal

Perfect control over all vehicle systems is provided by the patented iTerminal with its clear 10-inch display, which has become even clearer and more user-friendly thanks to touch control, a new design and color highlighting of all active vehiclesystems.

The driver's seat of the PistenBully 100 EU V.
Ergonomic driver's seat

A new ergonomic seat with improved lateral support, many adjustment options and seat heating. In addition, the PistenBully 100 has an air-suspended heavy-duty seat frame for healthier working and more driving comfort.

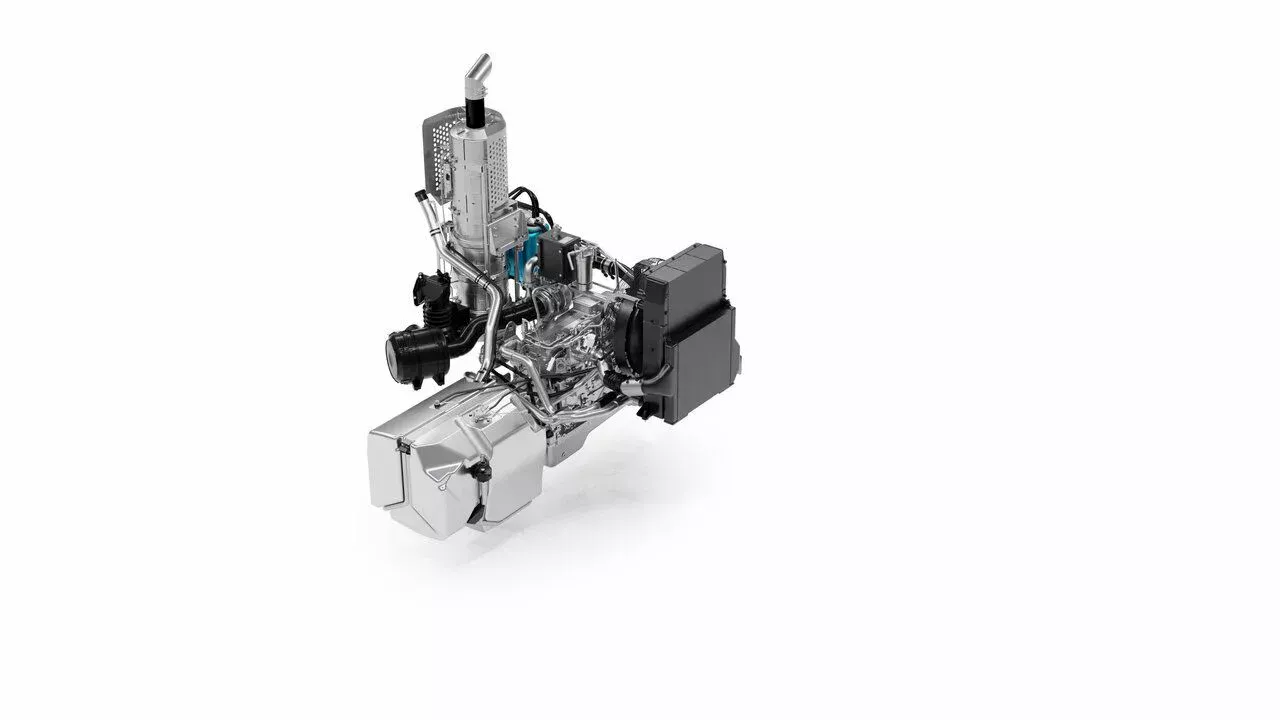

Engine of PistenBully 100 EU V.
State of the art exhaust system
  • Dosing unit
  • Diesel particulate filter
  • Oxidation catalyst
  • SCR catalyst
  • Urea tank (AdBlue® tank)
Most powerful engine in its class, economical and efficient


More powerful than ever before. With 20% more thrust, the PistenBully 100 has become even more agile and powerful. It can take on new challenges and can be used even more flexibly - just as a multi-talent should be.

Most powerful engine in its class

  • Powerful 6-cylinder engine with 188 kW / 256 hp at 1,800 rpm
  • Impressive torque of 1,152 Nm at 1,500 rpm
  • Less fuel consumption due to reduced engine speed
  • Low vibration and significantly quieter
  • Charge pressure reduction for optimum cold start

Most environmentally friendly exhaust technology

  • Lowest emission engine according to EU stage V
  • New fuel gauge for the AdBlue® tank



Ready for indoor use

  • With diesel particulate filter as standard
  • Suitable for grooming in ski halls
Eine frisch präparierte Piste.

Assistance system

Assistance system AutoTracer
AutoTracer

Rear implement carrier with intelligent, active steering assistance. Possible in both rigid position (fixed) and floating position (relieved). When activated, the tiller follows the PistenBully in the same curve radius. Automatic countersteering on side slopes. For automatic support and assistance for the driver!

Technical data

TypeCummins B 6,7
Cylinders6
Displacement6.7 l / 6.700 cm³
Power output (ECE)188 kW / 256 PS @ 1,800 U/min
max. torque1,152 Nm @ 1,500 U/min
Fuel tank capacity190 l
Fuel consumptionfrom 8.5 l/h
Tank capacity DEF (AdBlue)19 l
Exhaust emission standardEU Stage V and EPA Tier 4F (USA)
TypeCummins B 6,7
Cylinders6
Displacement6.7 l / 6,700 cc
Power output (ECE)256 hp @ 1,800 rpm
max. torque1,152 Nm @ 1,500 rpm
Fuel tank capacity41 gal
Fuel consumptionfrom 2.24 gal/h
Tank capacity DEF (AdBlue)5 gal
Exhaust emission standardEU Stage V and EPA Tier 4F (USA)
Technical Data of PistenBully 100
Equipment

Individually adjustable steering wheel

The steering wheel can also be individually adjusted by the driver. Folded away to save space when getting out of the cabin, it then springs back to its stored original position.

Drivers seat

Air suspension with heavy duty seat frame, ergonomic geometry for better lateral support, multi-adjustable headrest, single-level seat heating, lap belt, mechanically adjustable: 3-level seat tilt, seat cushion longitudinal adjustment and 4-level lumbar support.

Latest exhaust technology

Thanks to the standard EU V emission level, the PistenBully 100 is not only at home on the cross-country ski trail, but also in indoor ski centers.

LED worklight

The new LED worklights on the grab rails at the front and rear ensure optimum illumination of the work area.

Heated side windows in any position

The side windows can be double-slid and heated in any position for optimum visibility - even when open.

Cabin

  • Charge pressure reduction for optimum cold start
  • Heated rear window
  • DAB+ radio with handsfree
  • Bluetooth and USB interface
  • USB socket in armrest

Technology package

The PistenBully can be supplemented with other hydraulically driven attachments, such as the front-mounted snowblower, by means of a front mount high pressure connection kit.

Solid tires

As an alternative to pneumatic wheels, solid tires are also available.

LED light package

The comprehensive LED light package supplements the worklights with LED front headlights and a third central LED rear worklight for perfect illumination of the work areas.

Comfort seat

Additional to the standard seat are these features: multi-stage seat heating, 3-point seat belt, active ventilation in seat cushions and back section, pneumatically adjustable: center support for better hold, side / back bolsters and lumbar support.

Cabins for 5, 8 or 10 persons

No other snow groomer of this class offers you this: the possibility to install cabins for passenger transport up to max. 750 kg, with foldable bench seat.

More options

  • Parking heater
  • Rear view camera
  • Central locking system
  • Rear lift frame  with vibration damping when lifting / lowering
  • Rear lift frame with lateral damping when in side-to-side swing mode
  • Air conditioning (new: now inside the vehicle, instead of as a roof-mounted unit as in the past)
  • Hydraulic folding side finisher on the tiller
  • Searchlight
  • Seatbelt with shoulder harness
  • Hydraulic oil preheating
  • Brush guard
  • Stick control
  • Reinforced clamping axis
Impressions
pistenbully 100 in action
