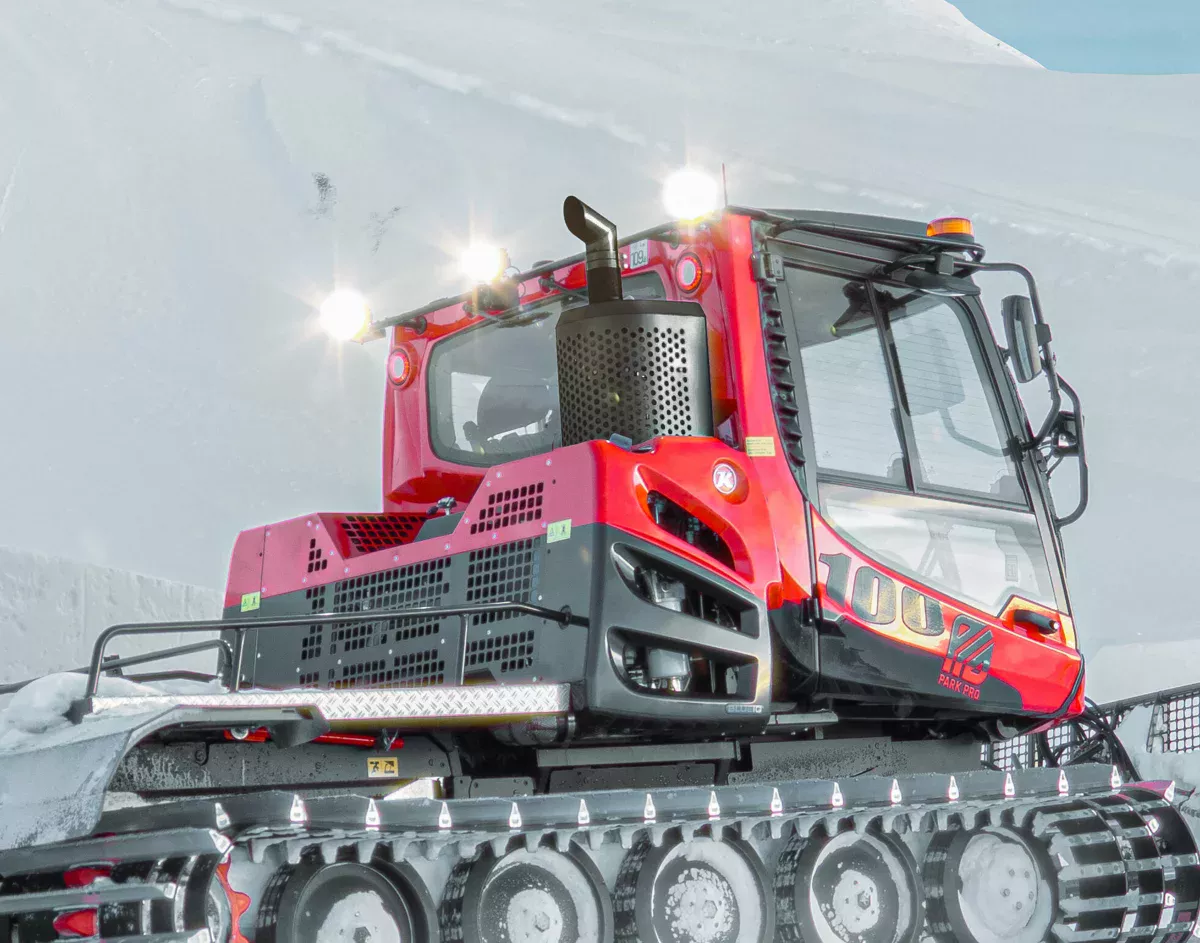

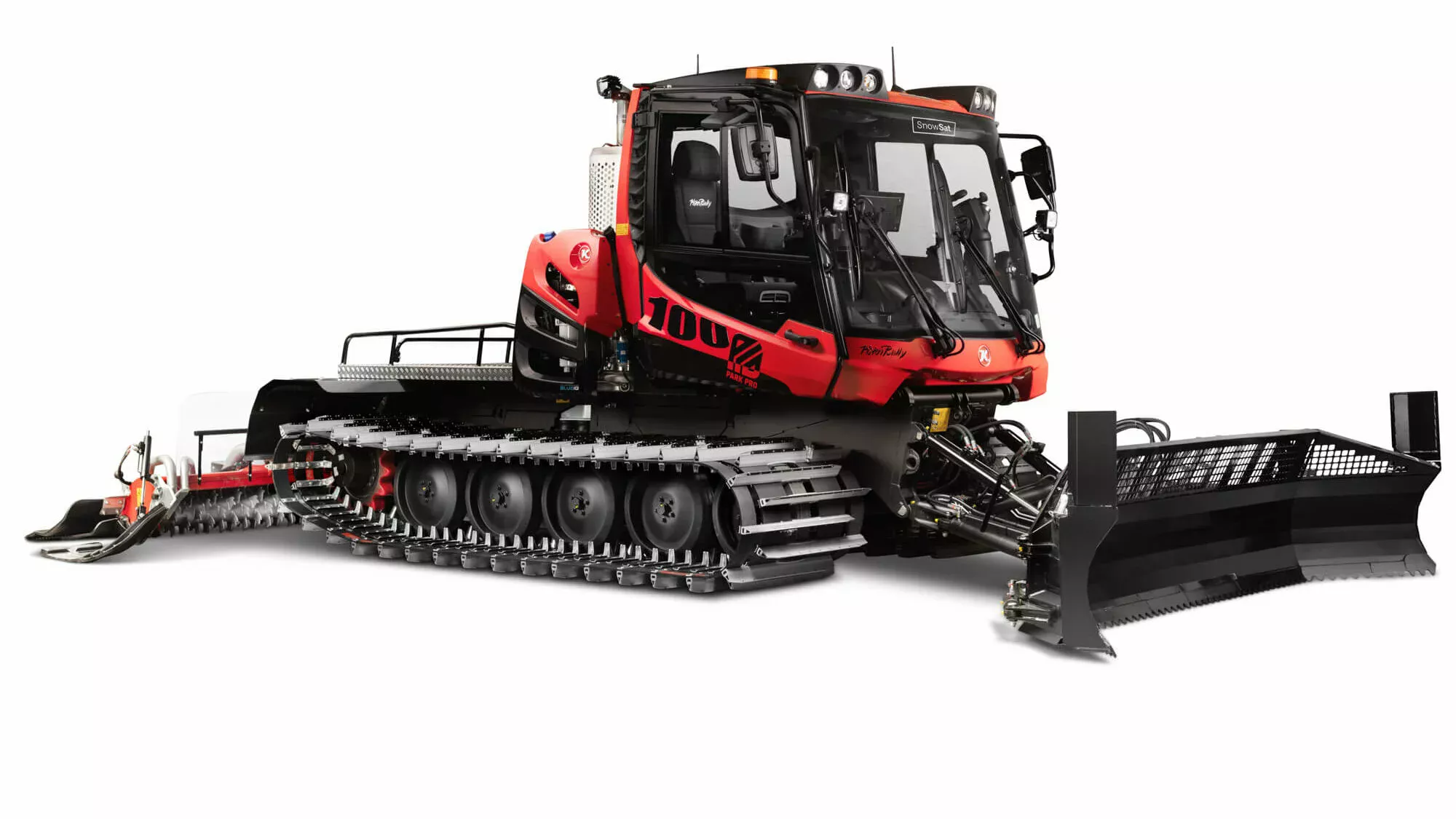

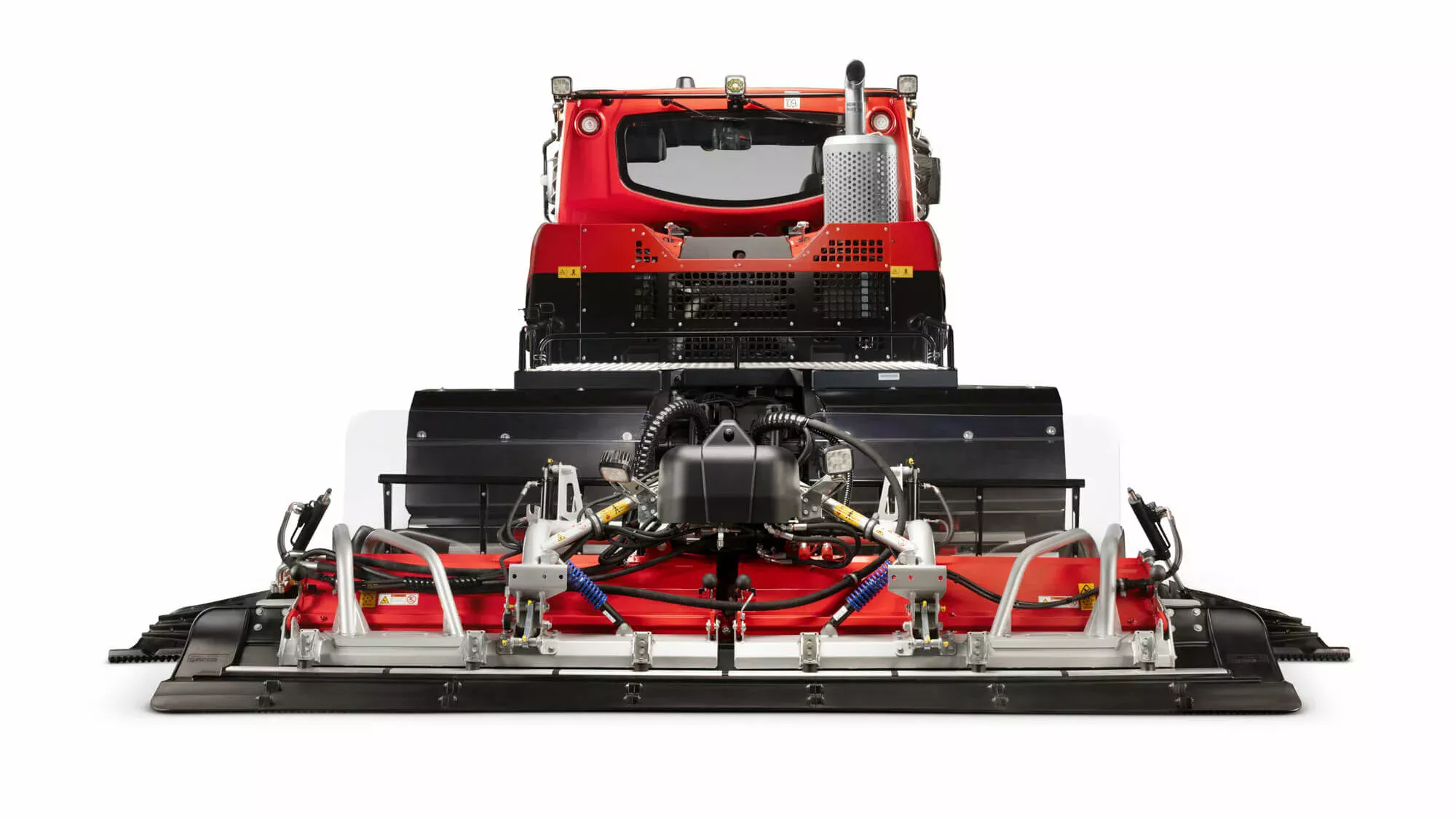

PistenBully 100 parkpro
THE PARK PROFESSIONAL FOR SMALL FUN AND FAMILY PARKS
With the PistenBully 100 ParkPro, PistenBully offers the ideal park machine for smaller snow parks such as fun or family parks, which make every ski resort more attractive.
It is based on the proven PistenBully 100, the most powerful snow groomer in its class. The legendary PB 100 has been optimized in collaboration with customers from all over the world. The result: ideal torque, the most environmentally friendly exhaust technology and other innovative new developments. With its superior engine performance, it ensures perfect slopes in alpine use – and now also perfect parks in the park version.
The popular ProFlexTiller known from the PB 400 ParkPro is now also available in a 3.2 meter width as a ParkFlexTiller for the PB 100 ParkPro. Thanks to its extreme flex angle and V/A position, it enables optimum work in the park. The ParkBlade with SideCutters and the proven ProMount system ensure maximum freedom of movement and unrestricted creativity in park construction.
The uniform operating concept of all PistenBully models is also found in the PB 100 ParkPro. A double-jointed joystick supports intuitive but also customized control. The function buttons on the armrest and joystick can be freely assigned – 3 customizable ParkPro profiles can be saved.
Thanks to powerful cylinders and the high-performance, proportional
hydraulics of the ProMount change system, the PB 100 ParkPro handles
all park construction requirements precisely, quickly and powerfully.

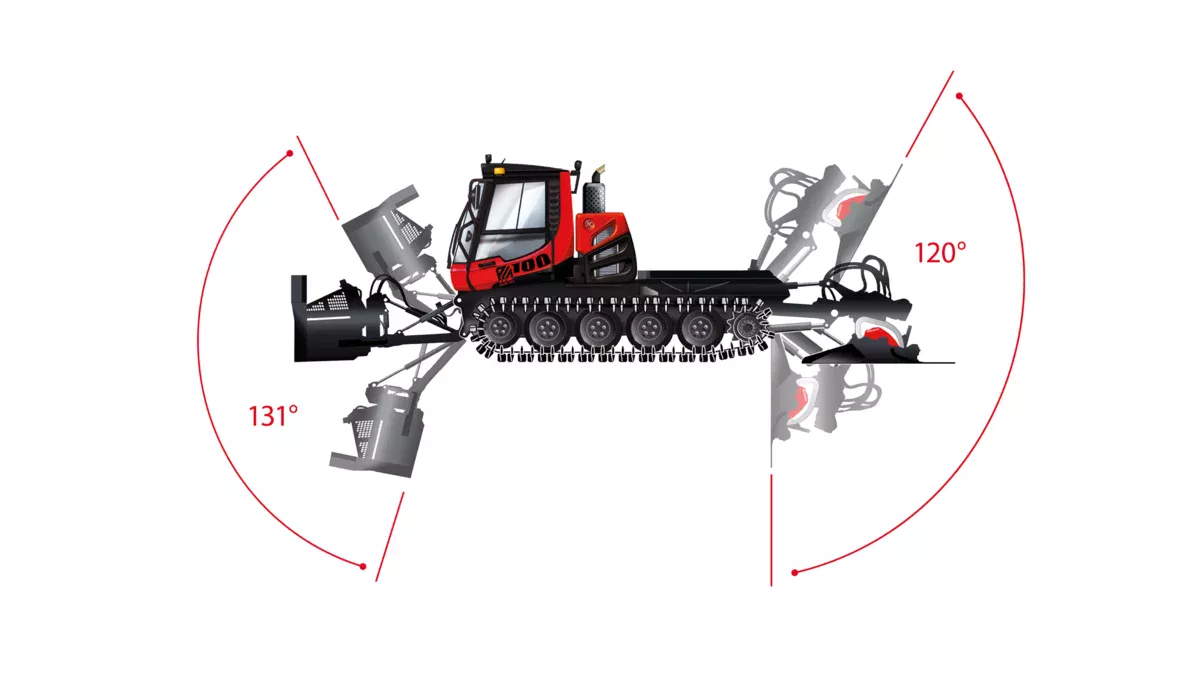

The optimized kinematics allow even larger movement radii in park
construction and greater flexibility of the attachments.
With the new ParkBlade and ParkFlexTiller, you’ll take your snowpark to the next level. Sharp cutting edges from foldable SideCutters, clean shaping with the OneTouchStraight function, and maximum adaptability thanks to V/A positioning, Freeze function, and hydraulically adjustable components. For ultimate control, perfect kickers – and more style in the park.
Breites Schild über gesamte Fräsbreite, mit Backbladeschnittkante, klappbaren Side-Cuttern und OneTouchStraight Funktion.

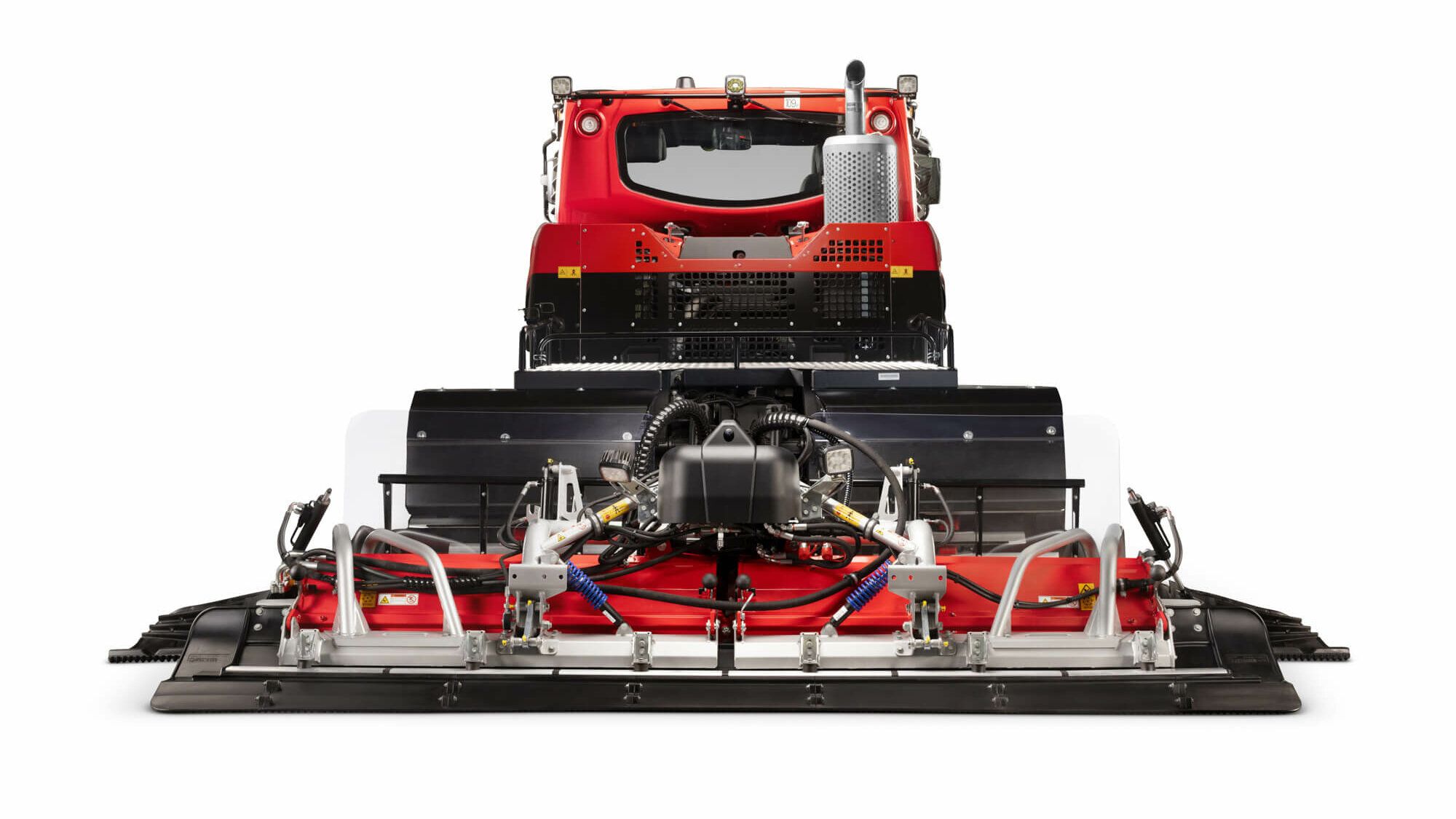

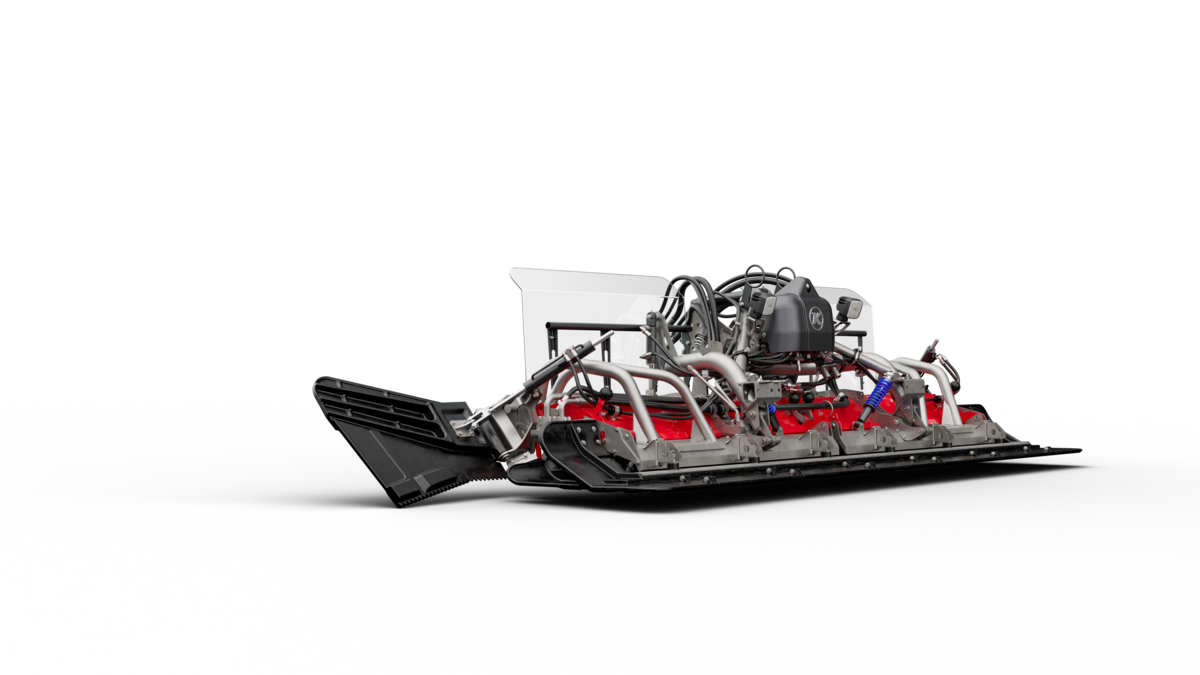

The new ParkFlexTiller enables optimum adaptation to the slope conditions thanks to the V/A position. In addition to actively approaching every end and intermediate position, you can accommodate every slope contour in a floating position and fix it in place with the freeze function.
With ParkPro kinematics and reinforced cylinders. No adapter frame necessary. For high mobility and more flexibility of the attachments. All devices can be operated simultaneously. Perfect for shaping and reshaping kickers and ramps, jumps and pipes.
Control of the rear carrier via joystick for intuitive operation when building a park and for more comfort when coupling the tiller.
Faster response characteristics with direct and proportional control of all functions.

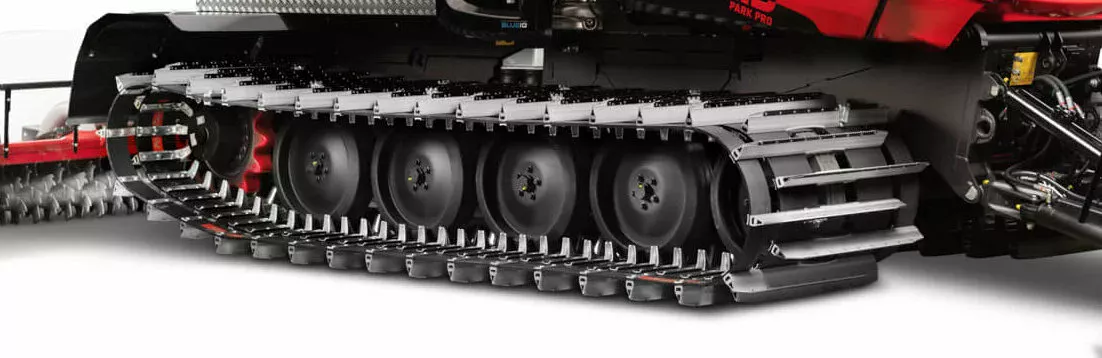

Chassis and tracks
Best climbing ability even on kickers thanks to 4 running axles and all-purpose 5-belt combination tracks.
ProMount change system
Thanks to powerful cylinders and the high-performance, proportional hydraulics of the ProMount change system, the PB 100 ParkPro handles all park construction requirements precisely, quickly and powerfully. The optimized kinematics allow even larger movement radii in park construction and greater flexibility of the attachments.
All implements can be operated simultaneously. Perfect for the skillful shaping and reshaping of kickers, ramps and jumps.

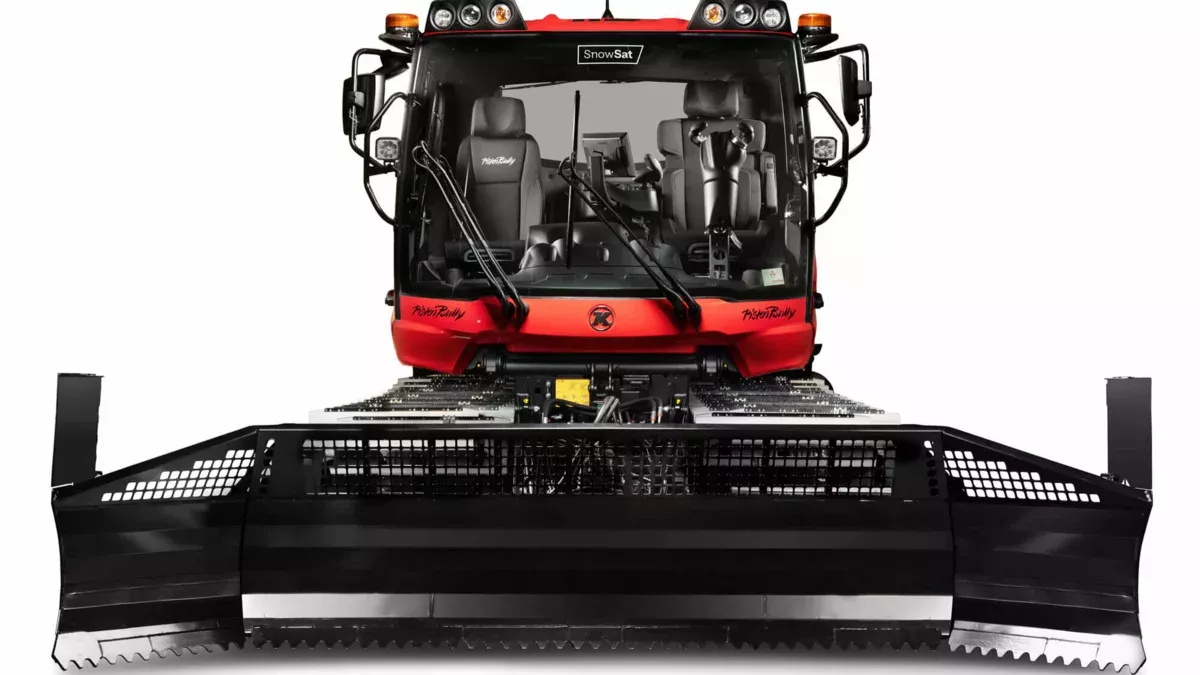

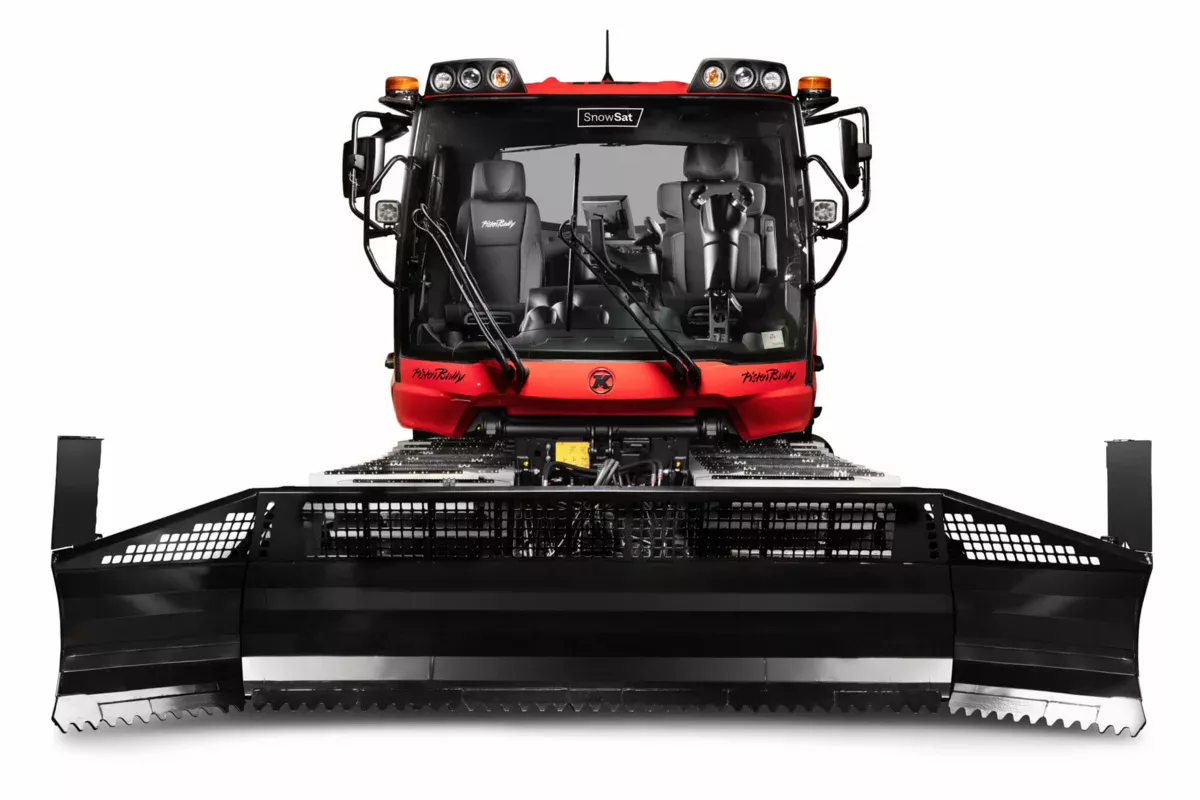

ParkBlade
Wide park blade with folding SideCutters: Form perfect cutting edges and shape kickers even more precisely. With the innovative OneTouchStraight function, you can quickly straighten the blade at the touch of a button – for cleanly pulling off and shaping kickers, for example.

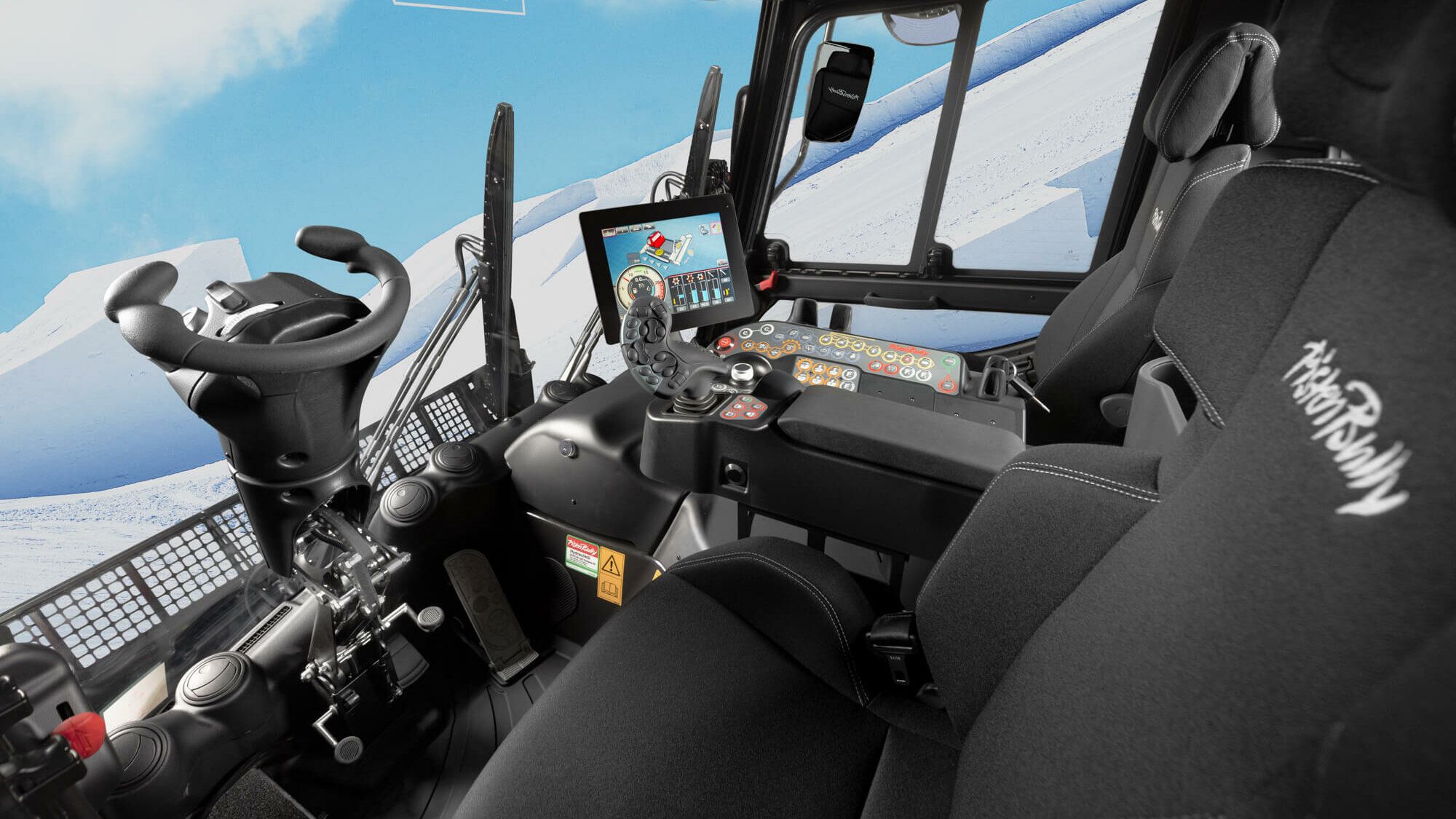

Driver's cab
The operator is in focus. Our cab achieves this principle with comfort, ergonomics and intuitive operation. The large windows, the perfect arrangement of all controls and ideal lighting ensure a clear overview and efficient working. The automatic heating and climate control system creates a pleasant room atmosphere. Storage options and cup holders increase comfort.

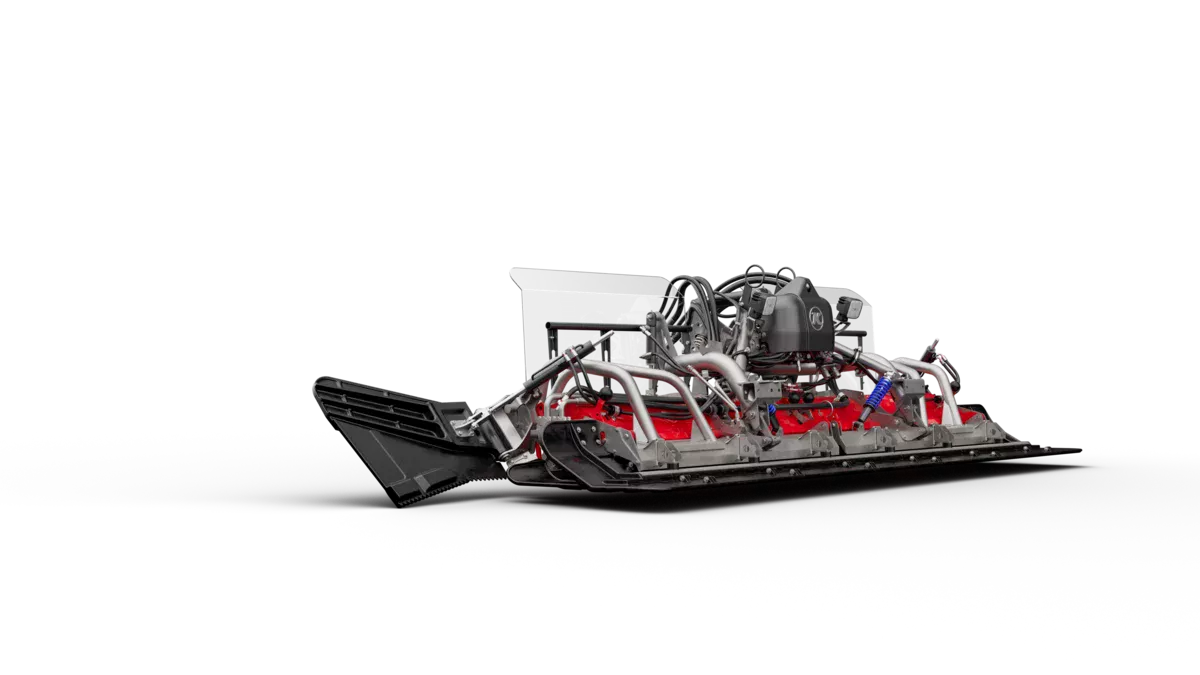

The new ParkFlexTiller enables optimum adaptation to the slope conditions thanks to the V/A position.
In addition to actively approaching every end and intermediate position, you can accommodate every slope contour in a floating position and fix it in place with the freeze function.

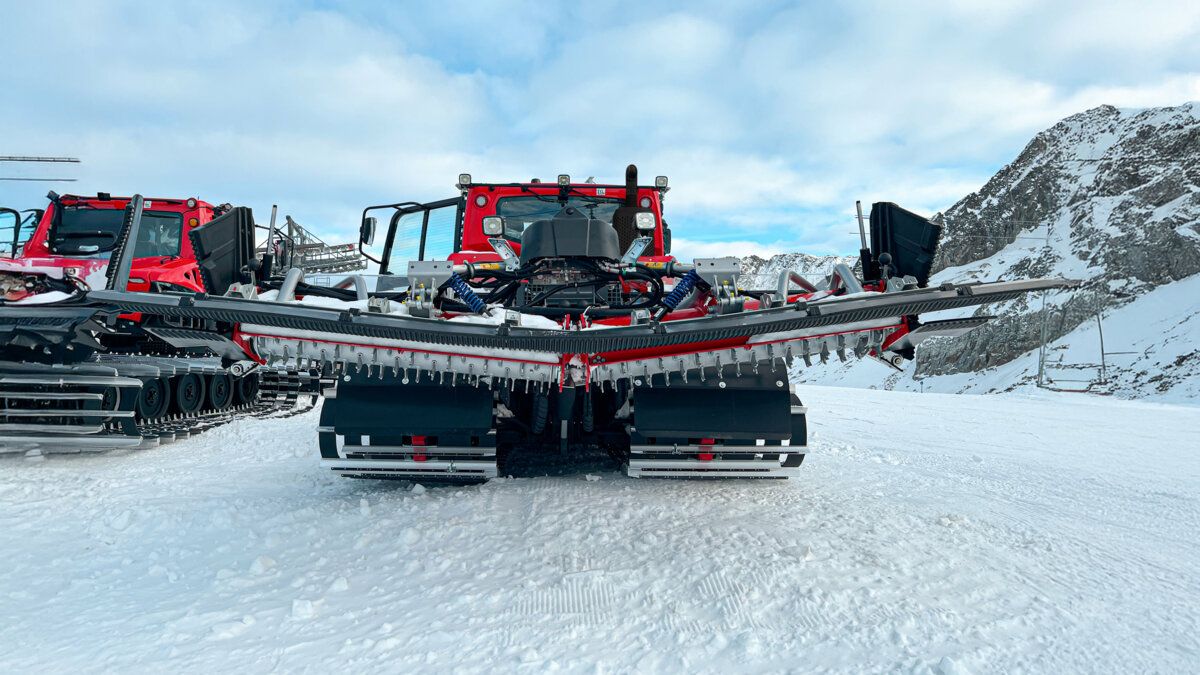

V position

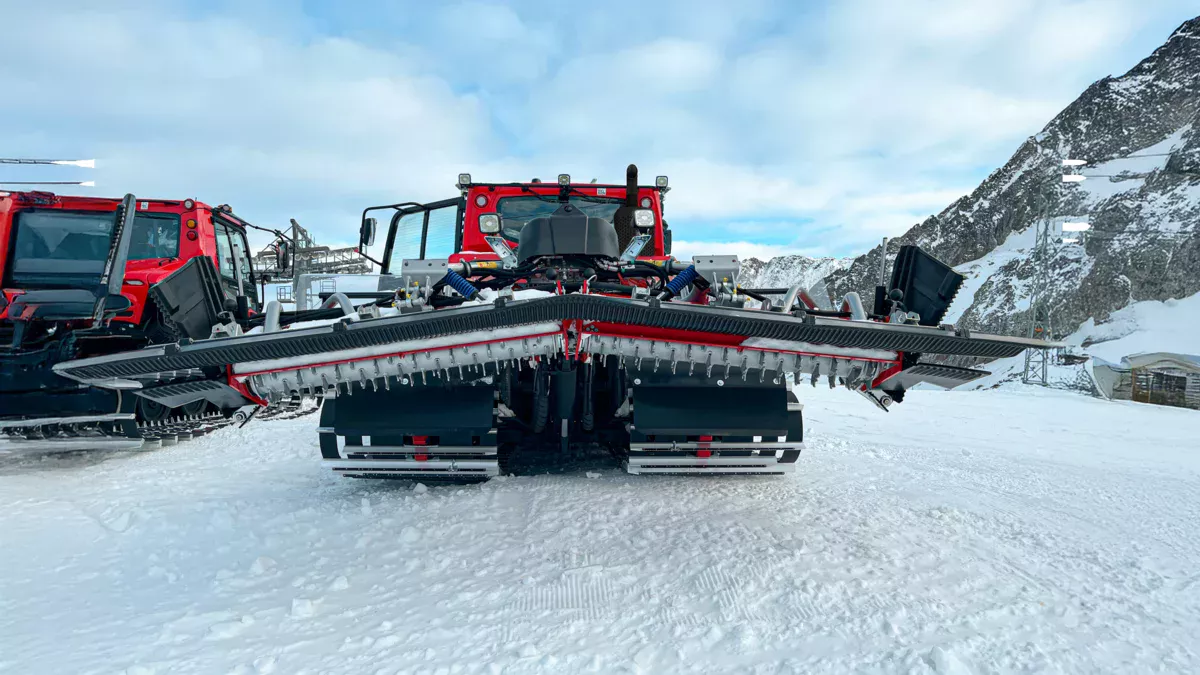

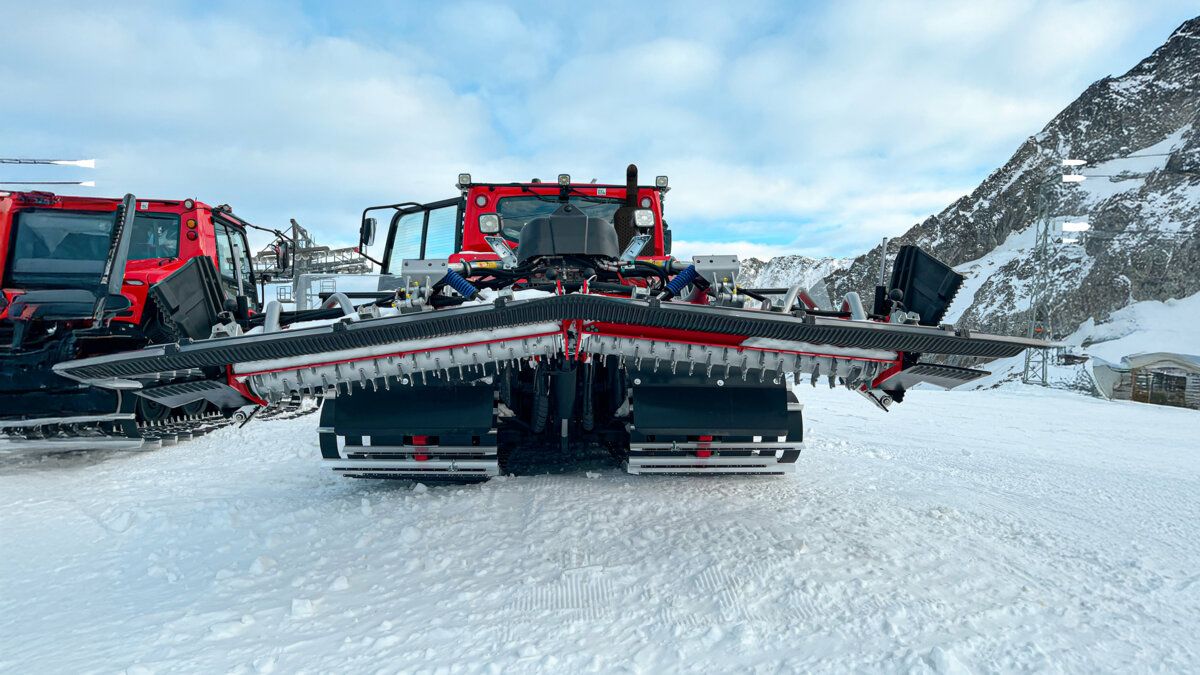

A position
You have the choice between two deck versions. The FullDeck version is available as an option.

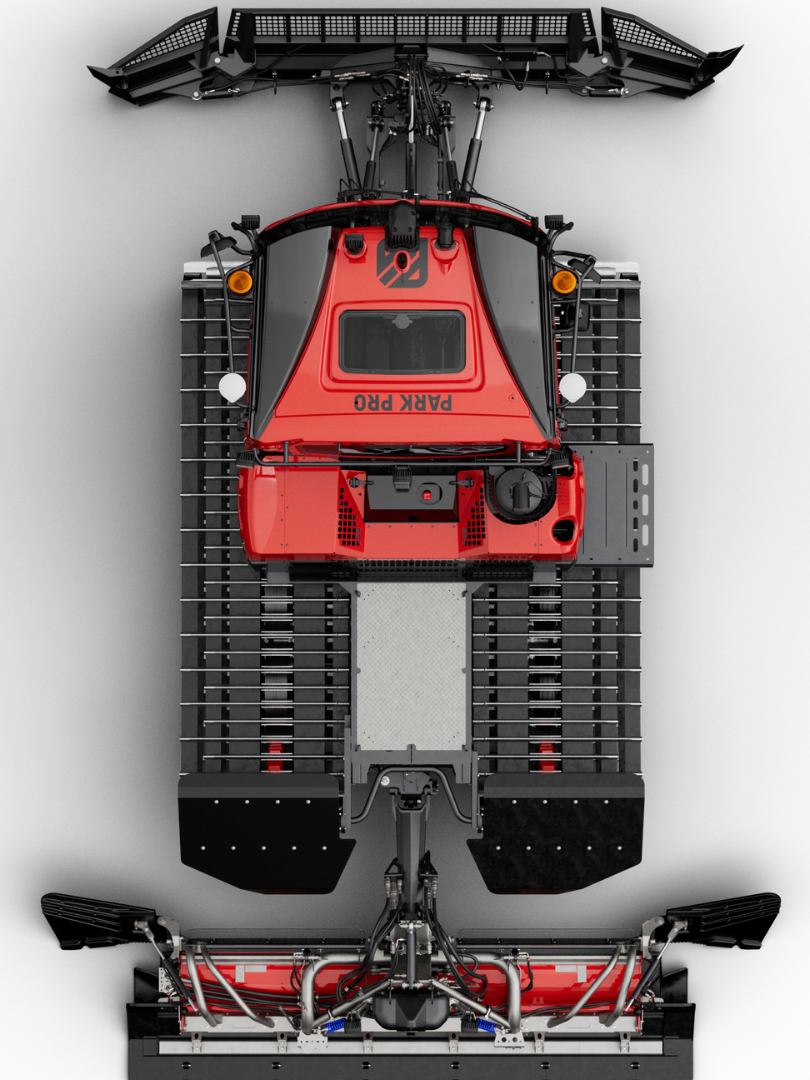

NoDeck
Optimal view of tracks and tiller

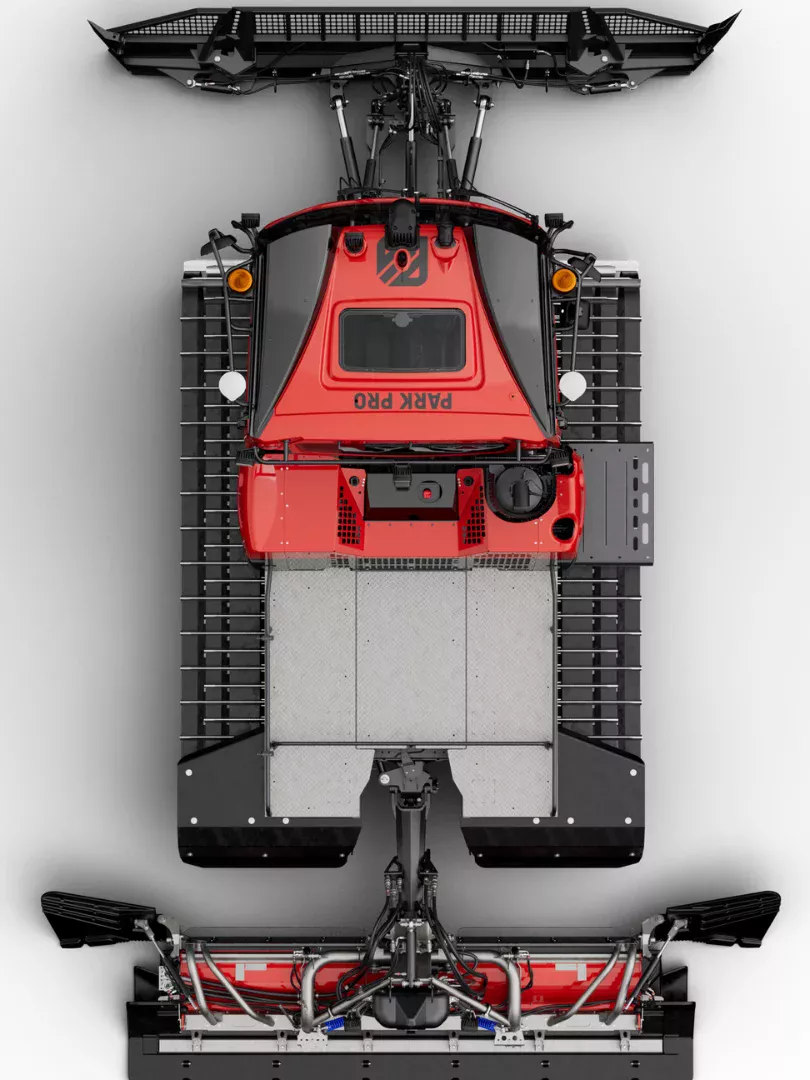

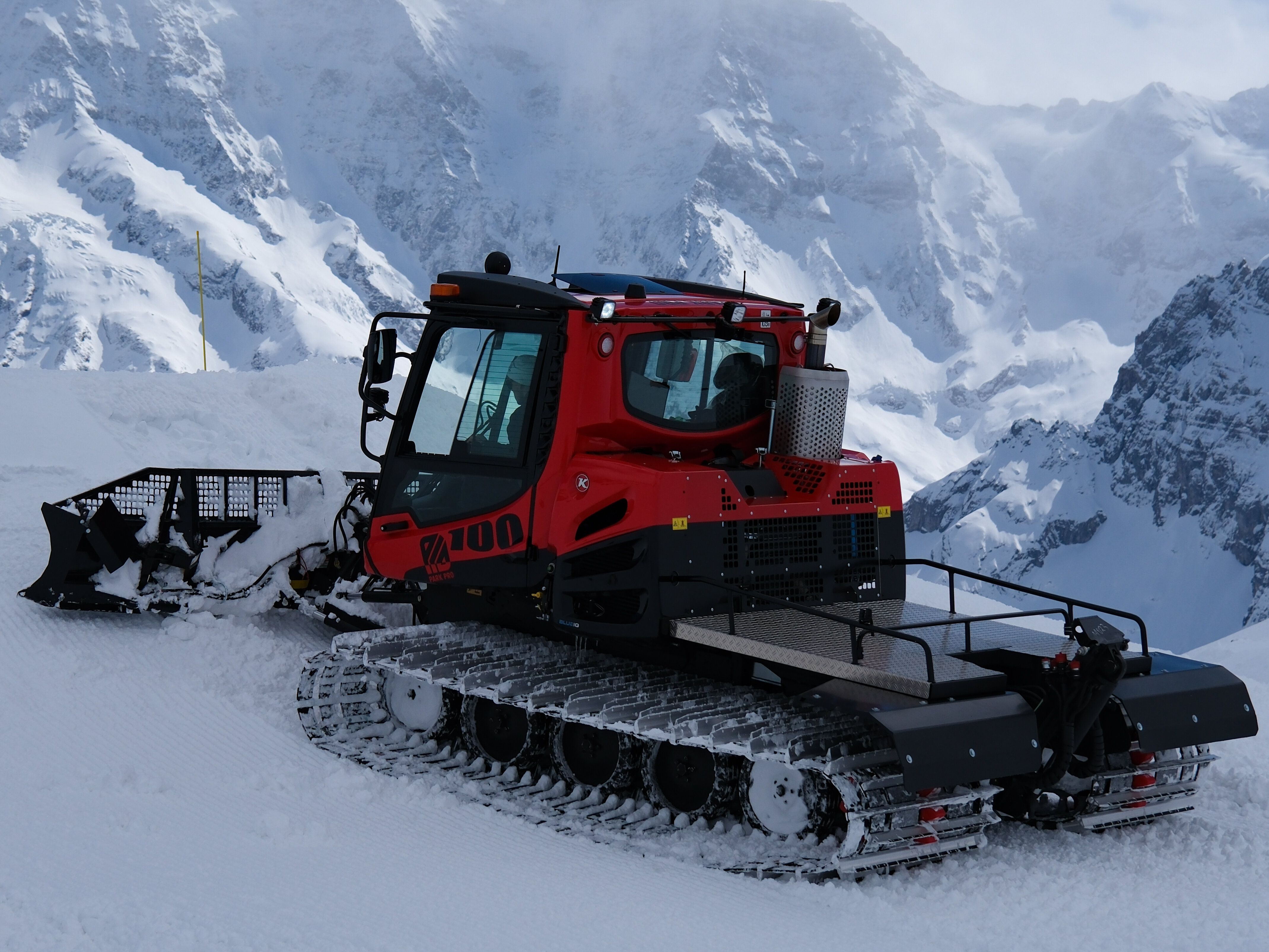

FullDeck
Large storage and transport area
Joystick
A double-jointed joystick supports intuitive but also customized control. The function buttons on the armrest and joystick can be freely assigned – 3 customizable ParkPro profiles can be saved.
SNOWsat
SNOWsat snow depth measurement provides a precise overview of the snow situation in the ski area. Only if you know the snow depths everywhere on the slopes can you move snow in a targeted manner. The result: perfect slopes for your guests every day, increased productivity, enormous cost savings, careful use of resources and increased work and operational safety.
But: SNOWsat is more than just snow depth measurement. Discover all SNOWsat solutions!
iTerminal
The touch display is intuitive and easy to operate. All active parts of the vehicle are color-highlighted. With a fast navigation option using symbols.
Stick control
In park construction, the stick control on each side supports precise handling and steering. You can control the speed with the power potentiometer.
HALF STEERING WHEEL
Optional for the standard stick control: the horizontally infinitely adjustable half steering wheel.
Assistance systems
AutoTracer
Automatic steering when cornering, automatic position compensation on side slopes: The rear implement carrier with active steering assistance takes the strain off you and guarantees maximum directional stability and maneuverability in all conditions.
SNOWsat snow depth measurement
Our precise snow depth measurement supports you in identifying areas with little snow and snow reserves. With SnowSat LiDAR even under, in front of and next to the vehicle, for efficient work and the highest quality in slope construction.

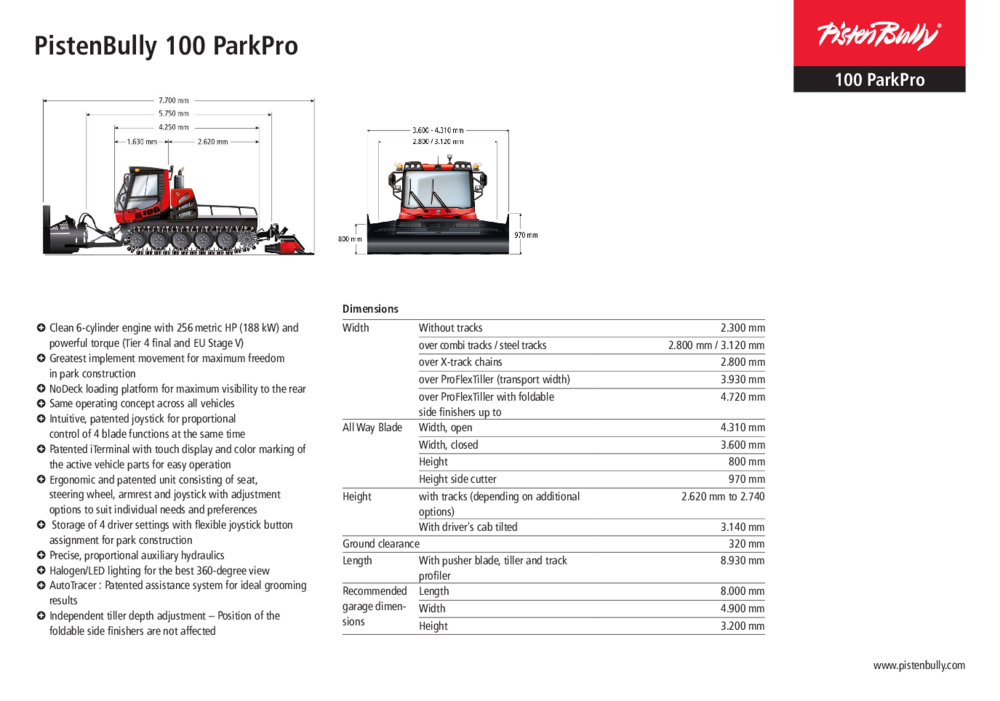

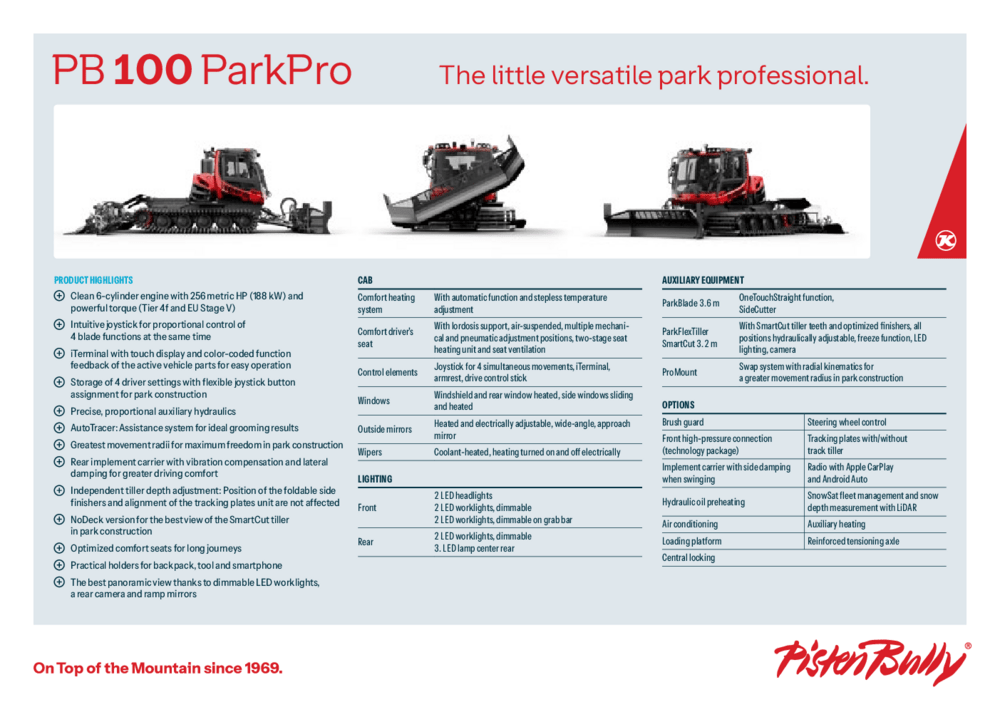

Technical data
| Engine | |
|---|---|
| Type | Cummins B 6,7 |
| Number of cylinders | 6 |
| Displacement | 6,7 L / 6.700 cc |

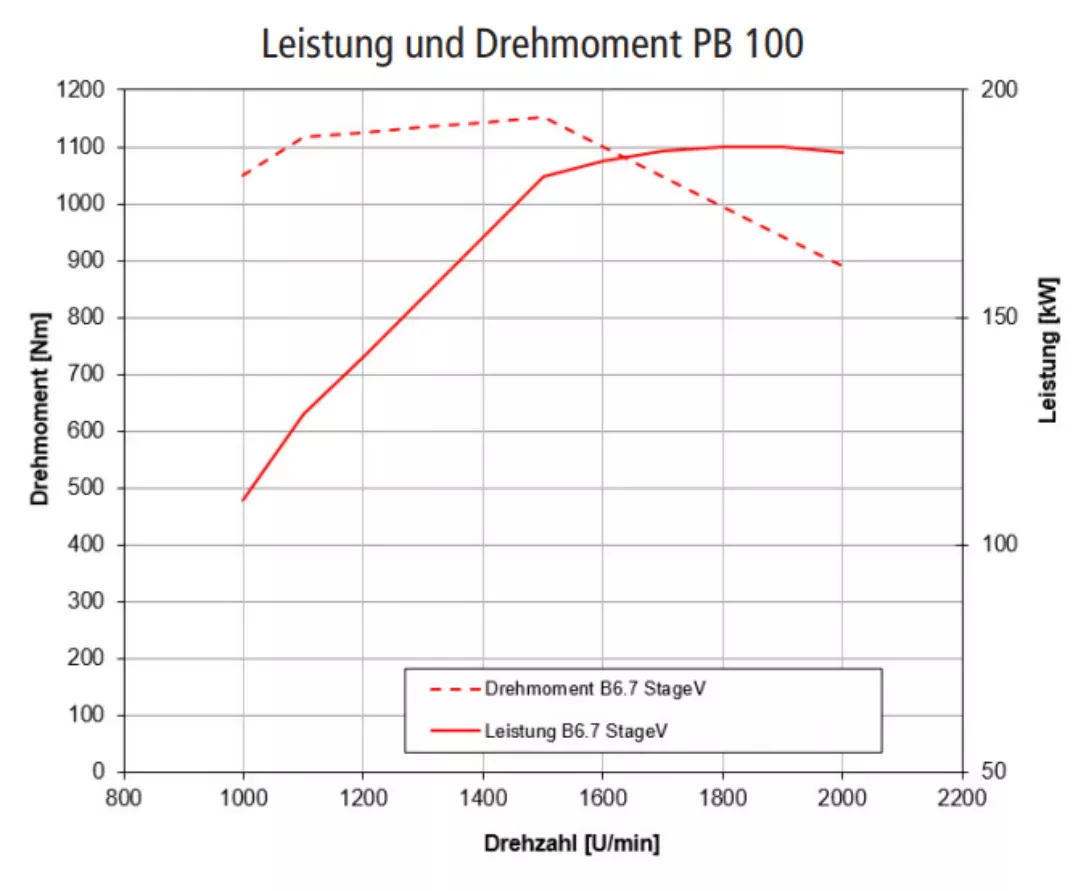

| Power in accordance with ECE | 188 kW / 256 metric HP @ 1.800 rpm |
| Exhaust emissions standard | EU Stage V |
| Max. tightening torque | 1.152 Nm @ 1.500 rpm |
| Tank capacity | 190 L |
| DEF (AdBlue®) tank capacity | 19 L |
| Fuel consumption | 8,5 L/h or more |
| Fahrantriebspumpe | |
| Fahrantriebe | |
| Fräsantrieb | |
- Increased degrees of freedom on the blade and adapted kinematics
- ParkFlexTiller with +/-14° flex angle incl. active control
- Park blade with backblading profile and OneTouchStraight function
- Comfort seat
- Stick control
- NoDeck version
- LED lighting package + LED headlights
- AutoTracer
- Rear camera
- Vibration damping on the rear implement carrier
- Steering wheel
- FullDeck version
- Radio with Apple CarPlay / Android Auto™ incl. improved hands-free system
- VarioTrackDesigner preparation
- Comfort air conditioning system
- Front hydraulics / front high pressure
- Hydraulic oil preheating
- Central locking
- Side damping on implement carrier, electrically adjustable
- Parking heater
*Apple CarPlay is a trademark of Apple Inc.
*Android Auto is a trademark of Google LLC.
As a total provider, Kässbohrer not only supplies the technology, but also the appropriate training and software.
