Our statement:
The cleanest and quietest

The new PistenBully 600 E+: Making the impossible possible.
Plenty of power. Less exhaust fumes and noise. Minimal operating costs. What seems impossible in combination becomes reality with the PistenBully 600 E+: It is the cleanest and quietest snow groomer in its class. Kässbohrer is thus taking another step in the right direction: The PistenBully 600 E+ is and remains a pioneer on the road to professional and at the same time sustainable slope preparation.

PistenBully 600 E+: The first vehicle with diesel-electric drive
We cannot part with our PistenBully 600 E+.
Dominik Kalbermatten, Piste Rescue Manager at Saastal Bergbahnen AG, Switzerland

Highlights
PistenBully 600 E+ Seitenansicht
Chains of the PistenBully 600 E+ for every application.

Tracks for every application

As flexible as a Swiss army knife, our undercarriage in combination with the chain can be adjusted to all customer requirements and thus offers the perfect solution for every application, regardless of what is important: pushing, climbing ability, turning ability, winch use, transport or heavy additional equipment.

Rear implement carrier

The combination equipment carrier is the "one for all" solution. Thanks to the SlopeTracer, it can follow the slope in parallel or slope contour mode. The Autotracer provides additional sie-too-side support and perfect lateral tracking. Thus another must-have for the perfect slope.

The quick-change system of the PistenBully 600 E+.

Quick-mount system

Packed with stronger cylinders, load check valves and hydraulic pipe protection, the new quick-mount system enables the highest attachment torques required for snow gun transport or pipe cutter tools. Of course, the unrestricted mobility is still maintained.

The 12-way blade of the PistenBully 600 E+.

AllWayBlade

With a working width of up to 5.2 m and an integrated snow gun mount, the AllWayBlade offers exactly what is expected of it: nimbleness, stability, flexibility and precise preparation for a perfect slope.

Driver's cab of the PistenBully 600 E+

Driver's cab

The driver is the center of attention. Our cab puts this guiding principle into practice with comfort, ergonomics and intuitive operation. Thanks to generous window glass, perfect arrangement and ideal illumination, visibility is excepational, especially at night.

PistenBully 600 E+ Cockpit
Der Joystick im Cockpit des PistenBully 600 E+.

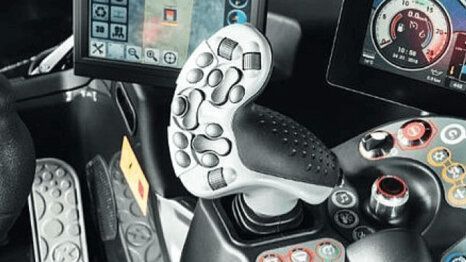

Joystick

Ergonomic and freely movable in all directions. For intuitive control. The joystick's four axes allow four simultaneous movements of the blade. And proportional control of the attachments. All with just one hand.


The high-quality interior trim of the cockpit of the PistenBully 600 E+.

Interior

High quality and easy to clean interior trim. New floor assembly. Both with innovative thermal insulation and significantly improved soundproofing, making the PistenBully 600 quieter than ever before. Optimized ventilation in the center console ensures a perfect interior climate - with comfort automatic air conditioning for the first time on request, plus plenty of space and freedom of movement.

The control unit of the cockpit of the PistenBully 600 E+.

Control unit

For a steady hand and safe handling in every driving situation: driver's seat, armrest and joystick are firmly connected. An ergonomic and comfortable unit. Individually adjustable to the driver. Enables fatigue-free operation, even when driving in rough terrain.

Die Bedieneinheit des Cockpits des PistenBully 600 E+.

SNOWsat

SNOWsat snow depth measurement provides a precise overview of the snow situation in the ski area. Only if you know the snow depths everywhere on the slopes can you move snow in a targeted manner. The result: perfect slopes for your guests every day, increased productivity, enormous cost savings, careful use of resources and increased work and operational safety.


But: SNOWsat is more than just snow depth measurement. Discover all SNOWsat solutions!

iTerminal PistenBully 600 E+

iTerminal

10-inch display with touch control. Clear and easy to use. All active vehicle parts are highlighted in color. With quick navigation option via symbols. Completely prepared for SNOWsat.

PistenBully 600 E+ diesel-electric drive
The two electric motors of the PistenBully 600 E+.

Electric motor (2×)

Powerful motors provide instant torque at the sprockets even at low revs.

The brake chopper with integrated ISO guard of the PistenBully 600 E+.

Brake chopper

With integrated ISO guard

 Transfer case of the PistenBully 600 E+.

Transfer case

Two generators and the high-voltage distributor are located above the transfer case.

Trafo- und Hydraulikölkühler im Motor des PistenBully 600 E+..

Hydraulic oil cooler

Diesel-electric drive


High energy efficiency and energy recuperation
The steady-state operation of the diesel engine in the optimum speed range makes it extremely efficient, economical and 20% quieter. When grooming uphill, the engine drives the generators with traction motors and the hydraulic pumps via the transfer case. Intelligent energy management ensures that during downhill travel the electric motors act as generators and support the engine in driving the hydraulic pumps via the transfer case. This reduces the load on the engine and thus significantly reduces fuel consumption.

Optimum operating point
In the PistenBully 600 E+, the driver specifies the desired travel speed with the accelerator pedal The intelligent vehicle control system uses this information to calculate the best possible operating point depending on slope gradient, travel speed and tilling power, at which the diesel engine provides the required power in a way that optimizes fuel consumption. This means that the vehicle is always driven at the lowest possible engine speed with high capacity utilization. Such a driving strategy is only possible with the PistenBully 600 E+.

Maximum power development at low engine speeds
The electric drive not only has excellent efficiency, but also guarantees constant high torque. Power is therefore available immediately and even at low engine speeds, giving the PistenBully 600 E+ a completely new driving experience with up to 16% more thrust from a standstill.

The best of two systems: Our diesel-electric drive
The world's only snow groomer with diesel-electric drive meets EU Stage V and impresses with its performance, economy and environmental friendliness. The high efficiency reduces fuel consumption by another 20% compared to the PistenBully 600 Polar! This also reduces CO2 emissions by 20%. And less fuel use means longer range.

Una pista recién preparada.

Assistance systems

Assistenzsystem des PistenBully 600 W: AutoTracer
MAXIMUM TRACKING STABILITY

AutoTracer

Rear implement carrier with intelligent, active steering assistance. Possible in both rigid position (fixed) and floating position (relieved). When activated the tiller follows the 600W in the same curve radius. Automatic countersteering on side slopes. For automatic support and relief of the driver!

Assistenzsystem des PistenBully 600 W: SlopeTracer
IDEAL GROUND FOLLOWING

SlopeTracer

Intelligent control of the rear implement carrier. Can be used like a parallel tool carrier via software. Ensures perfect ground adaptation of the tiller in hilly terrain and automatically adjusts the milling depth. The patented SlopeTracer simplifies operation and enables very large movement radii.

Assistenzsystem des PistenBully 800: Schneetiefenmessunng
RESOURCE-CONSERVING SNOW MANAGEMENT

SNOWsat snow depth measurement

The high-precision snow depth measurement helps the operator detect slope areas with small amounts of snow and identify snow reserves – under, in front of and on both sides of the vehicle. This way snow can be pushed with precision and maximum quality can be achieved for the slope structure. Increases productivity while conserving resources and helping to preserve the environment.

Technical data

TypeCummins X 12
Number of cylinders6
Displacement11,8 l / 11.800 cm³
Performance according to ECE382 kW / 520 PS
max. torque 2.375 Nm @ 1.200 U/min
Tank capacity300 l
Fuel consumptionfrom 17,0 l/h
Exhaust emission standardEU Stage V and EPA Tier 4F (USA)
Curva de potencia de accionamiento PistenBully 600 E+
TypeCummins X 12
Number of cylinders6
Displacement11.8 l / 11,800 cc
Performance according to ECE512 hp
max. torque2,375 Nm @ 1,200 rpm
Tank capacity79 gal
Fuel consumptionfrom 4.49 gal/h
Exhaust emission standardEU Stage V and EPA Tier 4F (USA)
Antriebsleistungskurve PistenBully 600 E+
Equipment

Transmission, Chassis & Wheels

  • Optimized transfer case with less noise and vibrations
  • Exclusively drawn axles for improved driving behavior
  • Shorter axles for better accessibility to the drive components
  • Reinforced rocker arm and wheel bearing due to larger tapered roller bearings
  • QuickAdjust for quick adjustment of the chassis via gear mechanism
  • Individual axle loads and spring characteristics for improved ride comfort (solo/winch)
  • More running smoothness and low pitching behavior thanks to damping of composite bushings
  • Magnum sprocket
  • Soid tires
  • Functional snowfenders against snow splash

Hydraulics and working hydraulics

  • Optimized accessibility
  • Flow output 20% higher than the predecessor
  • Optimized control for better efficiency
  • High pressure filter
  • Calibrated valves with identical response in all vehicles
  • Best performance values for speed and responsiveness
  • Individually adjustable valve characteristics
  • All functions can be controlled proportionally independently of each other
  • Common parts (e.g. proportional valves and solenoid coils)

Cabin

  • High-end sound system precisely matched to the vehicle
  • Rear camera color
  • DAB+ radio
  • Bluetooth hands-free kit
  • Connections: USB and audio in
  • Comfort driver's seat

Lighting

  • LED light package
  • LED SideFinder lights integrated in the support frame
  • LED TillerFlap lights
  • LED BladeFlap lights
  • Additional LED turn signals and tail lights integrated in the support frame

Electronics and batteries

  • Simple onboard diagnostics with error output in plain text
  • Automatic temperature compensation with cold run protection of the components
  • Maintenance-free batteries with higher cold start current
  • Service-friendly due to reduced variety of parts

Technology and engine

  • Auxiliary tank 120 l
  • Trailer hitch
  • High pressure connection for hydraulic front equipment
  • Stick control with power potentiometer for temporary increase of motor speed
  • Hydraulic oil preheating

Cabin and comfort

  • Seatbelt with shoulder harness
  • Premium sound package with Alpine subwoofer and amplifier
Impressions
PistenBully 600 E+ in operation
Everything from a single source

As a total provider, Kässbohrer not only supplies the technology, but also the appropriate training and software

thinking about tomorrow today.

That's exactly what we've been doing since yesterday.

 The topic of sustainability has a long tradition at Kässbohrer. It is firmly anchored in our corporate strategy and shows the demands we make on ourselves: To act responsibly with a view to future generations. To think holistically. Leading the way with innovative solutions to set new standards and help shape the future.
