600 W
A clear announcement
Representative of a new generation. Pioneer and milestone. Dream machine. This is what can happen when a manufacturer develops a snow groomer in close cooperation with its customers. With the PistenBully 600 W, we have jointly succeeded in setting new standards. In terms of power and performance. In efficiency, operation and comfort. The new PistenBully 600 W elevates winching on mountain to a shole new level. And more environmentally friendly. The PistenBully 600 W is more than just a normal snow groomer. It stands not only for perfect slopes, but for sustainable and efficient slope management at the very highest level.
Highest power output in its class due to low dead weight, more power and higher torque. For better climbing ability and more thrust performance.
Joystick for intuitive control with just one hand. Clear iTerminal with simple operation. Driver's seat, joystick and armrest as ergonomic operating unit.
It was the first to meet the requirements of EU emissions stage V. With diesel particulate filter. For reduced exhaust emissions and low fuel consumption. Compact and easy to maintain.
The active 4.6+ winch with AutoWinch (automatic winch pull control) is easy to operate even in difficult slope conditions.
“Advantages? The thrust performance on very steep slopes. And the enormous climbing performance.
Showroom
As flexible as a Swiss army knife, our undercarriage in combination with the chain can be adjusted to all customer requirements and thus offers the perfect solution for every application, regardless of what is important: pushing, climbing, turning, or winching.,.
The combination equipment carrier is the "one for all" solution. Thanks to the SlopeTracer, it can follow the slope in parallel or slope contour mode. The Autotracer provides additional side-to-side support and perfect lateral tracking. Thus another must-have for the perfect slope.
Packed with stronger cylinders, loadcheck valves and hydraulic pipe protection, the new mount- change system enables the highest attachment torques required for snow gun transport or pipe cutting tools. Of course, the unrestricted mobility is still maintained.
With a working width of up to 5.2 m and an integrated snow gun mount, the AllWayBlade offers exactly what is expected of it: Lightness, stability, flexibility and precise preparation for a perfect slope.
The driver is the center of attention. This guiding principle is realized in our cab with comfort, ergonomics and intuitive operation. Thanks to generous window glass, perfect arrangement and ideal illumination, visibility is exceptional, especially at night. The rear camera provides a clear view behind the winch.
Thanks to the latest technology, the AutoWinch is perfectly matched to the vehicle. The combination of enormous pulling force, active steering and automatic control of winch pulling force ensures high production and safety on the slopes. Completely automatically, if desired.
High quality and easy to clean interior trim. New floor assembly. Both with innovative thermal insulation and significantly improved soundproofing, making the PistenBully 600 W quieter than ever before. Optimized ventilation in the center console ensures a perfect interior climate - with comfort automatic air conditioning for the first time on request, plus plenty of space and freedom of movement.
Ergonomic and freely movable in all directions. For intuitive control. The joystick's four axes allow four simultaneous movements of the blade. And proportional control of the attachments along with winch pulling force and active steering. All with just one hand.
For a steady hand and safe handling in every driving situation: driver's seat, armrest and joystick are firmly connected. An ergonomic and comfortable unit. Individually adjustable to the driver. Enables fatigue-free operation, even when driving in rough terrain.
SNOWsat snow depth measurement provides a precise overview of the snow situation in the ski area. Only if you know the snow depths everywhere on the slopes can you move snow in a targeted manner. The result: perfect slopes for your guests every day, increased productivity, enormous cost savings, careful use of resources and increased work and operational safety.
But: SNOWsat is more than just snow depth measurement. Discover all SNOWsat solutions!
10-inch display with touch control. Clear and easy to use. All active vehiclesystems are highlighted in color. With quick navigation option via symbols. Completely prepared for SNOWsat.
Precise steering: The semi-steering wheel is infinitely adjustable side-to-side and fits comfortably in the hand. The driver effortlessly steers the PistenBully and finds the most important functions directly in the steering.
As an option to the steering wheel: Stick control for direct handling and steering. A thumb dial potentiometer regulates travel speed.
Significantly more power and torque than its predecessor despite lower fuel consumption. Long range thanks to larger tank volume (300 l) for efficient and economical operation.
Compact engine with simple design. Fewer complex components and improved access. Thus clear, easy to maintain and less prone to malfunctions and errors.
Environmentally friendly pioneer: With the clean 6-cylinder engine with 461 hp including diesel particulate filter, the PistenBully 600 W is the first snow groomer in the world to meet EU Stage V.
Assistance systems
Rear implement carrier with intelligent, active steering assistance. Possible in both rigid position (fixed) and floating position (relieved). When activated the tiller follows the 600W in the same curve radius. Automatic countersteering on side slopes. For automatic support and relief of the driver!
Intelligent control of the rear implement carrier. Can be used like a parallel tool carrier via software. Ensures perfect ground adaptation of the tiller in hilly terrain and automatically adjusts the milling depth. The patented SlopeTracer simplifies operation and enables very large movement radii.
The high-precision snow depth measurement helps the operator detect slope areas with small amounts of snow and identify snow reserves – under, in front of and on both sides of the vehicle. This way snow can be pushed with precision and maximum quality can be achieved for the slope structure. Increases productivity while conserving resources and helping to preserve the environment.
Intelligent winch with automatic tension control. Can be switched onat the panel. Synchronizes travel speed and rope speed to each other. In the event of a deviation, for example due to slippage, the tractive force is increased and automatically can be overridden manually if required. Protects the winch rope and aides the driver.
Automatic steering support for the winch simplifiesM work for the operator – especially under difficult slope conditions.
Technical data
| Motor | ||
| Type | Cummins X 12 | |
| Number of cylinders | 6 | |
| Displacement | 11.8 l / 11,800 cm³ | |
| Performance according to ECE | 339 kW / 461 PS | |
| max. torque | 2,250 Nm @ 1,200 U/min | |
| Tank capacity | 300 l | |
| Fuel consumption | from 19.5 l/h | |
| Tank capacity DEF (AdBlue) | 38 l | |
| Emission standard | EU Stage V and EPA Tier 4F (USA) | |
| Traction drive pump | 175 cm³ | |
| Traction drives | 125 cm³ | |
| Milling drive | 105 cm³ | |
| Winch | ||
| Tractive force stepless, automatic | 45 kN / 4,6 t | |
| Motor | ||
| Type | Cummins X 12 | |
| Number of cylinders | 6 | |
| Displacement | 11.8 l / 11,800 cc | |
| Performance according to ECE | 445 hp | |
| max. torque | 2,250 Nm @ 1,200 rpm | |
| Tank capacity | 79 gal | |
| Fuel consumption | from 5.15 gal/h | |
| Tank capacity DEF (AdBlue) | 10 gal | |
| Emission standard | EU Stage V and EPA Tier 4F (USA) | |
| Traction drive pump | 175 cc | |
| Traction drives | 125 cc | |
| Milling drive | 105 cc | |
| Winch | ||
| Tractive force stepless, automatic | 45 kN / 4.6 t | |

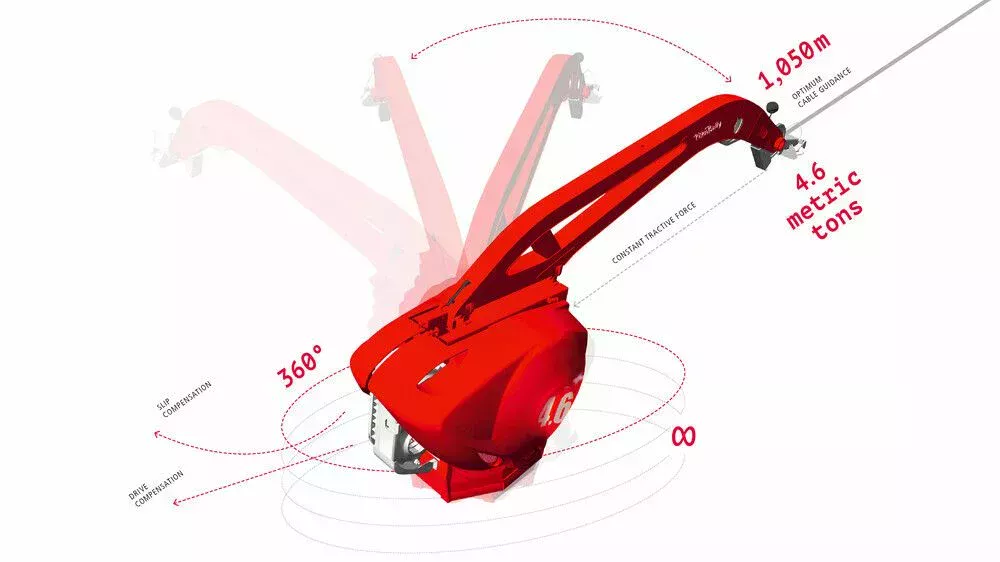

Winch 4.6+
360° unlimited. The new active winch with AutoWinch.
the current remaining rope length in the display
With automatic activation when reversing
to prevent operating errors
from capstan to reel
to protect against consequential damage
With optimized handling and pitch stability
during rope pull-out due to automatic pull-ou
650 meters or 1,400 meters
for early detection of wire and strand breaks
AutoWinch
Rope speed precisely matched to travel speed via automatic tension control. Can be manually overridden if required. Protects the winch rope and aides the driver.
Active winch, maximum track stability
Enables automatic co-control of the winch boom. Optimum steering behavior is achieved even in difficult runway conditions and lateral traction loads.
Constant tractive force, new drive drum winch.
The capstan drive ensures a consistently high tractive force and rope speed, regardless of the remaining rope length on the reel. The advantage: More safety, especially at high travel speeds.
Transmission, Chassis & Wheels
- Optimized transfer case with less noise and vibrations
- Exclusively drawn axles for improved driving behavior
- Shorter axles for better accessibility to the drive components
- Reinforced rocker arm and wheel bearing due to larger tapered roller bearings
- QuickAdjust for quick adjustment of the chassis via gear mechanism
- Individual axle loads and spring characteristics for improved ride comfort (solo/winch)
- More running smoothness and low pitching behavior thanks to damping of composite bushings
- Magnum sprocket
- Solid tires
- Functional snow fenders to prevent snow ejection
Hydraulics and working hydraulics
- Electro-hydraulic brake
- New transfer gearbox angles the drivel pumps outward by 5
- Optimized accessibility
- 20% higher flow output than the predecessor
- Optimized control for better efficiency
- High pressure filter
- Calibrated valves with identical response characteristics in all vehicles
- Best performance values for speed and responsiveness
- Individually adjustable valves
- All functions can be controlled proportionally independently of each other
- Common parts (e.g. proportional valves and solenoid coils)
Cabin
- High-end sound system precisely matched to the vehicle
- Rear camera color
- DAB+ radio
- Bluetooth hands-free kit
- Connections: USB and audio in
- Comfort driver's seat
- Seatbelt with shoulder harness
Lighting
- LED lighting package
- LED SideFinder lights integrated in the support frame
- Additional LED turn signals and tail lights integrated in the carrying frame
- Halogen TreeLine lights
- Halogen BladeFlap lights
Electronics and batteries
- Simple onboard diagnostics with error output in plain text
- Automatic temperature compensation with cold run protection of the components
- Maintenance-free batteries with higher cold start current
- Service-friendly due to reduced variety of parts
Technology and engine
- Auxiliary fuel tank (120 l)
- Trailer hitch
- High pressure connection kit for hydraulic front mount attachements
- Charge pressure reduction (cold start aid)
- Stick control with power potentiometer for temporary increase of motor speed
- Hydraulic oil preheating
Cabin and comfort
- Parking heater
- Automatic air conditioning
- Premium Soundpake
Attachments
As a total provider, Kässbohrer not only supplies the technology, but also the appropriate training and software.
Thinking about tomorrow today.
That's exactly what we've been doing since yesterday.
The topic of sustainability has a long tradition at Kässbohrer. It is firmly anchored in our corporate strategy and shows the demands we make on ourselves: To act responsibly with future generations in mind. To think holistically. Leading the way with innovative solutions to set new standards and help shape the future.
