600
A clear message
Representative of a new generation. Pioneer and milestone. Dream machine. This is what can happen when a manufacturer develops a snow groomer in close cooperation with its customers. The PistenBully 600 sets standards – in efficiency, operation and comfort. It is packed with patents. Climbs better. Pushes more powerfully. Weighs less and is significantly quieter. The PistenBully 600 is lighter than any other in its class. And more environmentally friendly.
The PistenBully 600 is more than just a normal snow groomer. It stands not only for perfect slopes, but for sustainable and efficient slope management at the very highest level.
It was the first to meet the requirements of EU emissions stage V. With diesel particulate filter. For reduced exhaust emissions and low fuel consumption. Compact and easy to maintain.
Joystick for intuitive control with just one hand. Clear iTerminal with simple operation. Driver's seat, steering wheel and armrest as an ergonomic operating unit.
Relief for the driver thanks to assistance systems. With intelligent automatic functions. For easy handling, lighter work and improved slope quality.
Despite lower fuel consumption, the engine has significantly more power and torque than its predecessor. And a long range thanks to larger tank volume. For efficient and economical operation.
“Milestones have been reached, this is quality at the highest level.
Showroom
As flexible as a Swiss army knife, our undercarriage in combination with the track can be adjusted to all customer requirements and thus offers the perfect solution for every application, regardless of what is required: pushing, climbing ability, turning ability, transport or heavy additional equipment.
The combination equipment carrier is the "one for all" solution. Thanks to the SlopeTracer, it can follow the slope in parallel or slope contour mode. The Autotracer provides additional side-to-side support and perfect lateral tracking. Thus another must-have for the perfect slope.
Packed with stronger cylinders, load-check valves and hydraulic pipe protection, the new quick-mount system enables the highest attachment torques required for snow gun transport or pipe cutter tools. Of course, unrestricted maneuverability is still maintained.
With a working width of up to 5.2 m and integrated snow gun mount, the AllWayBlade offers exactly what is expected of it: nimbleness, stability, flexibility and precise preparation for a perfect slope.
The driver is the center of attention. This guiding principle is realized in our cab with comfort, ergonomics and intuitive operation. Thanks to generous window glass, perfect arrangement and ideal illumination, visibility is exceptional, especially at night.
For a steady hand and safe handling in every driving situation: driver's seat, armrest and joystick are firmly connected. An ergonomic and comfortable unit. Individually adjustable to the driver. Enables fatigue-free operation, even when driving in rough terrain.

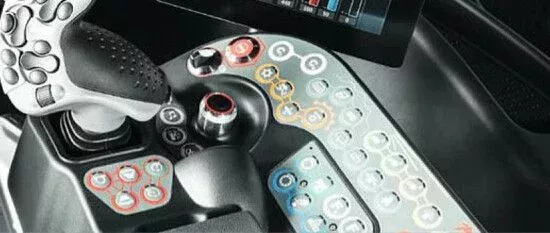

Ergonomic and freely movable in all directions. For intuitive control. The joystick's four axes allow four simultaneous movements of the blade. And proportional control of the attachments. All with just one hand.
High-quality, easy-to-clean interior trim. New floor assembly. Both with innovative thermal insulation and significantly improved soundproofing, making the PistenBully 600 quieter than ever before. Optimized ventilation in the center console ensures a perfect interior climate - with comfort automatic air conditioning for the first time on request, plus plenty of space and freedom of movement.
Precise steering: The semi-steering wheel is infinitely adjustable side-to-side and fits comfortably in the hand. The driver effortlessly steers the PistenBully and finds the most important functions directly in the steering.
As an option to the steering wheel: Stick control for direct handling and steering. A thumb dial potentiometer regulates travel speed.
10-inch display with touch control. Clear and easy to use. All active vehicle systems are highlighted in color. With quick navigation option via icons. Completely prepared for SNOWsat.
SNOWsat snow depth measurement provides a precise overview of the snow situation in the ski area. Only if you know the snow depths everywhere on the slopes can you move snow in a targeted manner. The result: perfect slopes for your guests every day, increased productivity, enormous cost savings, careful use of resources and increased work and operational safety.
But: SNOWsat is more than just snow depth measurement. Discover all SNOWsat solutions!
Compact engine with simple design. Fewer complex components and improved access. As a result, clear, easy to maintain and less prone to malfunctions and faults.
Environmentally friendly pioneer: with its clean 6-cylinder engine with 461 hp including diesel particulate filter, the PistenBully 600 was the first snow groomer in the world to comply with EU Stage V.
Despite lower fuel consumption, significantly more power and torque than its predecessorthere is long range thanks to larger tank volume (300 l) (79 gal) for efficient and economical operation.
Assistance systems
Rear implement carrier with intelligent, active steering assistance. Possible in both rigid position (fixed) and floating position (relieved). When activated the tiller follows the 600W in the same curve radius. Automatic countersteering on side slopes. For automatic support and relief of the driver!
Intelligent control of the rear implement carrier. Can be used like a parallel tool carrier via software. Ensures perfect ground adaptation of the tiller in hilly terrain and automatically adjusts the milling depth. The patented SlopeTracer simplifies operation and enables very large movement radii.
The high-precision snow depth measurement helps the operator detect slope areas with small amounts of snow and identify snow reserves – under, in front of and on both sides of the vehicle. This way snow can be pushed with precision and maximum quality can be achieved for the slope structure. Increases productivity while conserving resources and helping to preserve the environment:

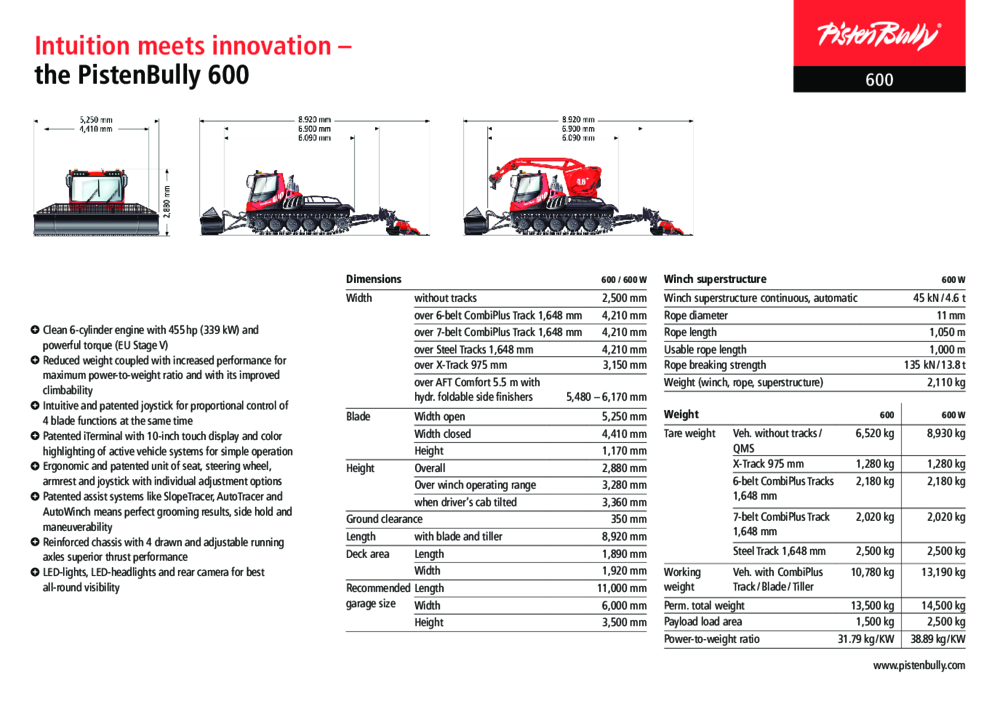

Technical data
| Type | Cummins X 12 | |
| Cylinders | 6 | |
| Displacement | 11.8 l / 11,800 cm³ | |
| Power output (ECE) | 339 kW / 461 PS | |
| max. torque | 2,250 Nm @ 1,200 U/min | |
| Fuel tank capacity | 300 l | |
| Fuel consumption | from 19.5 l/h | |
| Tank capacity (AdBlue) | 38 l | |
| Exhaust emission standard | EU Stage V and EPA Tier 4F (USA) | |
| Propulsion pump | 175 cm³ | |
| Propulsion drive | 125 cm³ | |
| Tiller drive | 105 cm³ | |
| Type | Cummins X 12 | |
| Cylinders | 6 | |
| Displacement | 11.8 l / 11,800 cc | |
| Power output (ECE) | 455 hp | |
| max. torque | 2,250 Nm @ 1,200 rpm | |
| Fuel tank capacity | 79 gal | |
| Fuel consumption | from 5.15 gal/h | |
| Tank capacity (AdBlue) | 10 gal | |
| Exhaust emission standard | EU Stage V and EPA Tier 4F (USA) | |
| Propulsion pump | 175 cc | |
| Propulsion drive | 125 cc | |
| Tiller drive | 105 cc | |
Transmission, chassis & wheels
- Optimized transfer case with less noise and vibration
- Exclusively towed axles for improved drivability
- Shorter axles for better accessibility to drive components
- Reinforced rocker arm and wheel bearings with larger tapered roller bearings
- QuickAdjust for quick adjustment of the suspension via gear mechanism
- Individual axle loads and spring characteristics for improved ride comfort (solo/winch)
- Smoother running and less pitching due to damping of composite bushings
- Magnum sprocket
- Solid tires
- Functional snow fenders to prevent snow ejection
Hydraulics and working hydraulics
- Electro-hydraulic brake
- New transfer case angles the drive pumps outward by 5°
- Optimized accessibility
- Flow output 20% higher than the previous model
- Optimized control for better efficiency
- High pressure filter
- Calibrated valves with identical response characteristics in all vehicles
- Best performance values for speed and response
- Valves can be individually adjusted
- All functions can be controlled independently and proportionally
- Parts commonality (e.g. proportional valves and solenoid coils)
Cabin
- High-end sound system precisely matched to the vehicle
- Rear camera color
- DAB+ radio
- Bluetooth hands-free system Connections: USB and audio-in
- Comfort driver's seat
Lighting
- LED lighting package
- LED SideFinder lights integrated in the support frame
- Additional LED turn signals and tail lights integrated in the carrying frame
- Halogen TreeLine lights
- Halogen BladeFlap lights
Electronics and batteries
- Simple onboard diagnostics with error codes in plain text
- Automatic temperature compensation with cold run protection of components
- Maintenance-free batteries with higher cold start amperage
- Service-friendly due to reduced number of parts
Technology and engine
- Auxiliary fuel tank (120 l )
- Trailer hitch
- High pressure connection kit for hydraulic front implements
- Charge pressure reduction (cold start aid)
- Stick control with power potentiometer for temporary increase of engine speed
- Hydraulic oil preheating
Cab and comfort
- Shoulder harness
- Parking heater
- Automatic climate control
- Premium sound package with Alpine subwoofer and amplifier
Attachments
As a total provider, Kässbohrer not only supplies the technology, but also the appropriate training and software.
